Additional information
| Weight | 9,558 kg |
|---|---|
| Reference number | 1685992, 1439576 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 15.265 |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Output force M | 2448.17 lbf |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 0.59 in |
| Push-rod thread | Ball R8 |
| Release pressure | 88.47 psi |
| Return-spring force | 49.46 lbf |
| Stroke | 2.52 / 2.52 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 11.5 in |
| Type of operation | Disc |
| GTIN | 04057875284970 |
| Size (mm x mm x mm) | 355x215x200 |
| UPC | 193133356363 |
| Weight (kg) | 9.558 |
| Weight (lb) | 21.07 |

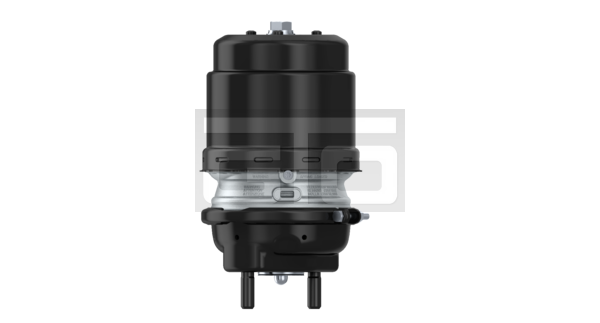

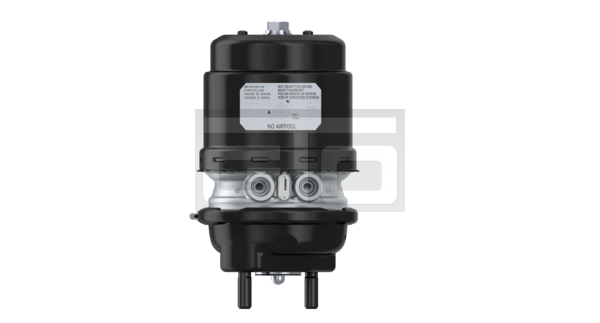

| Type | 22/24 HFL3 |
| Brand | WABCO |
