Description

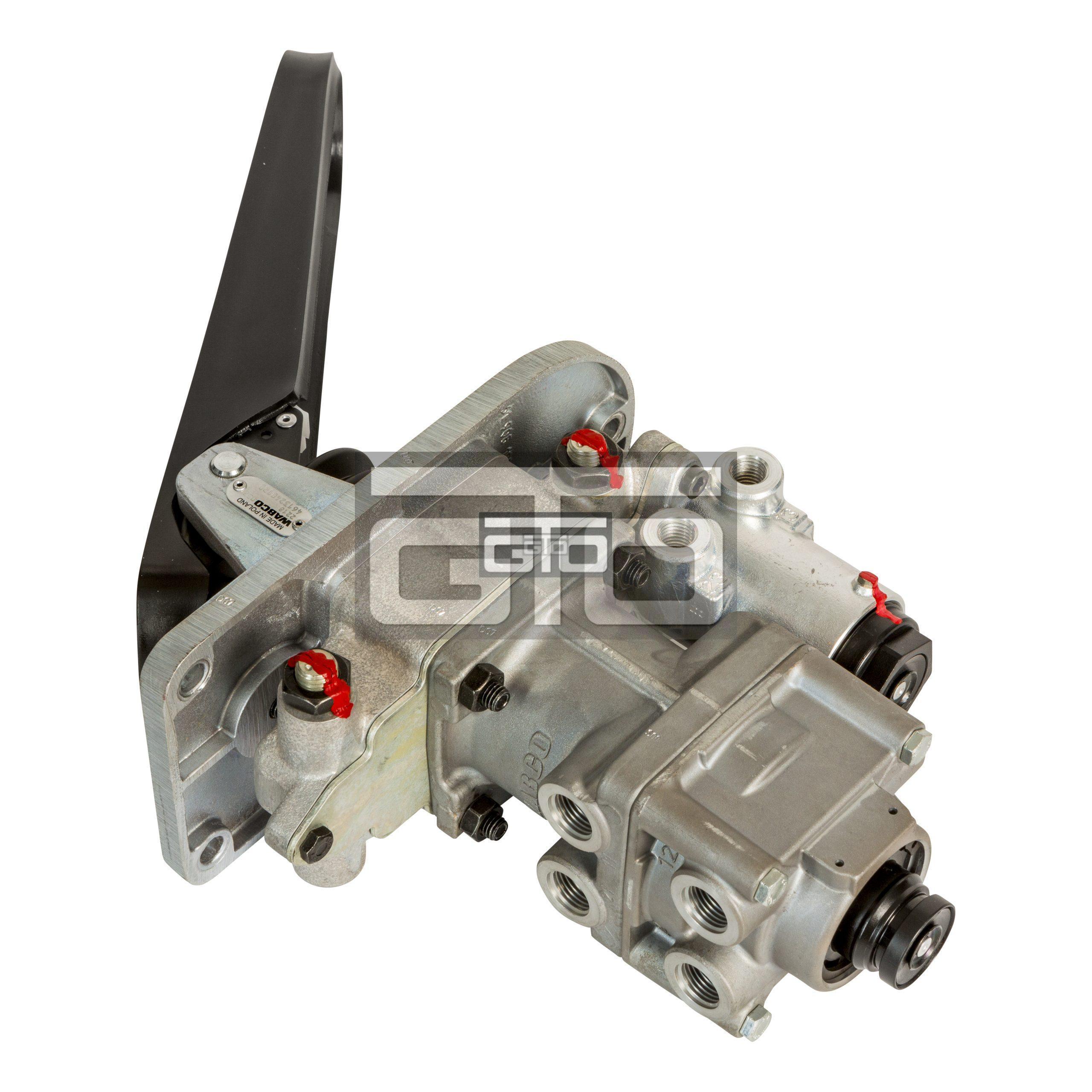

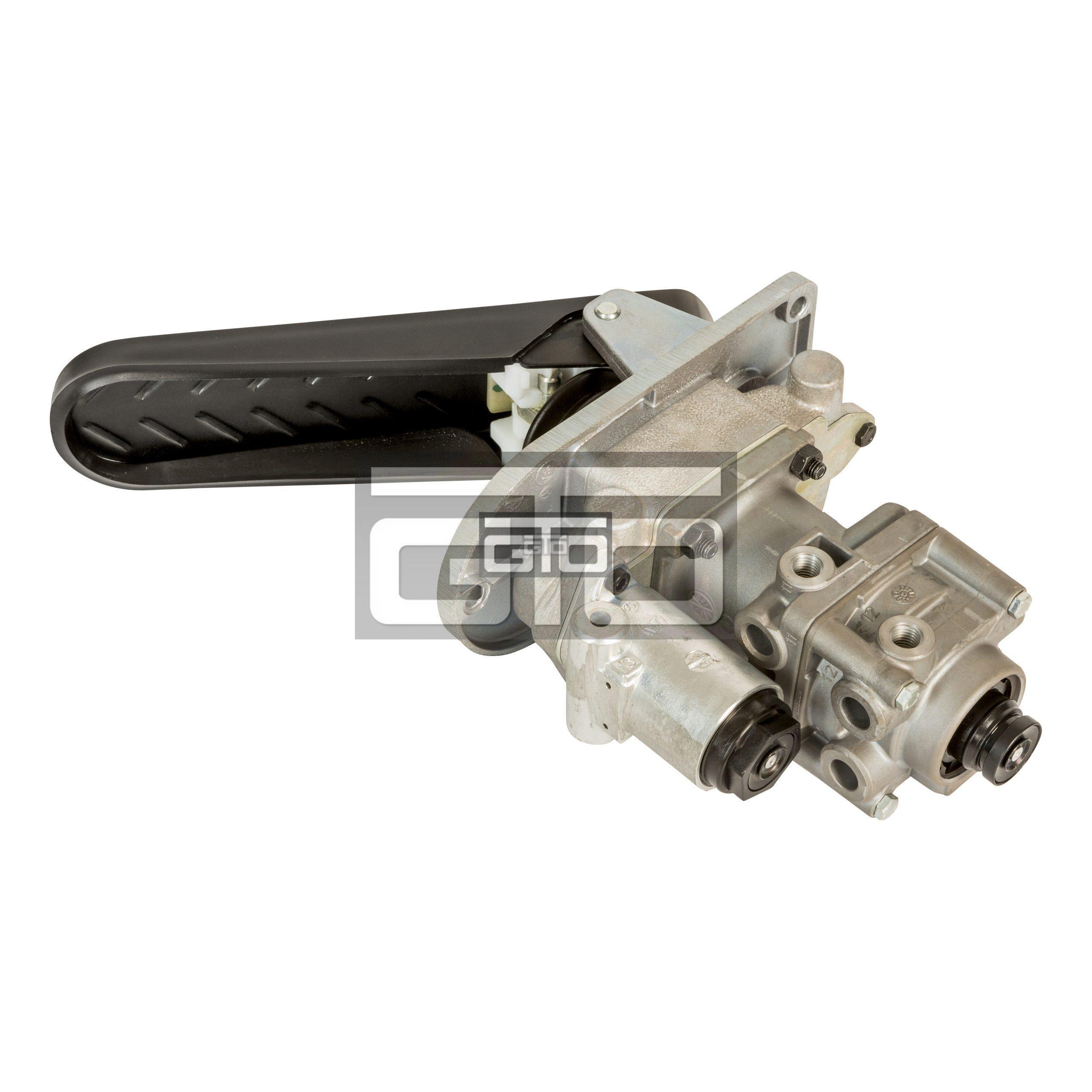

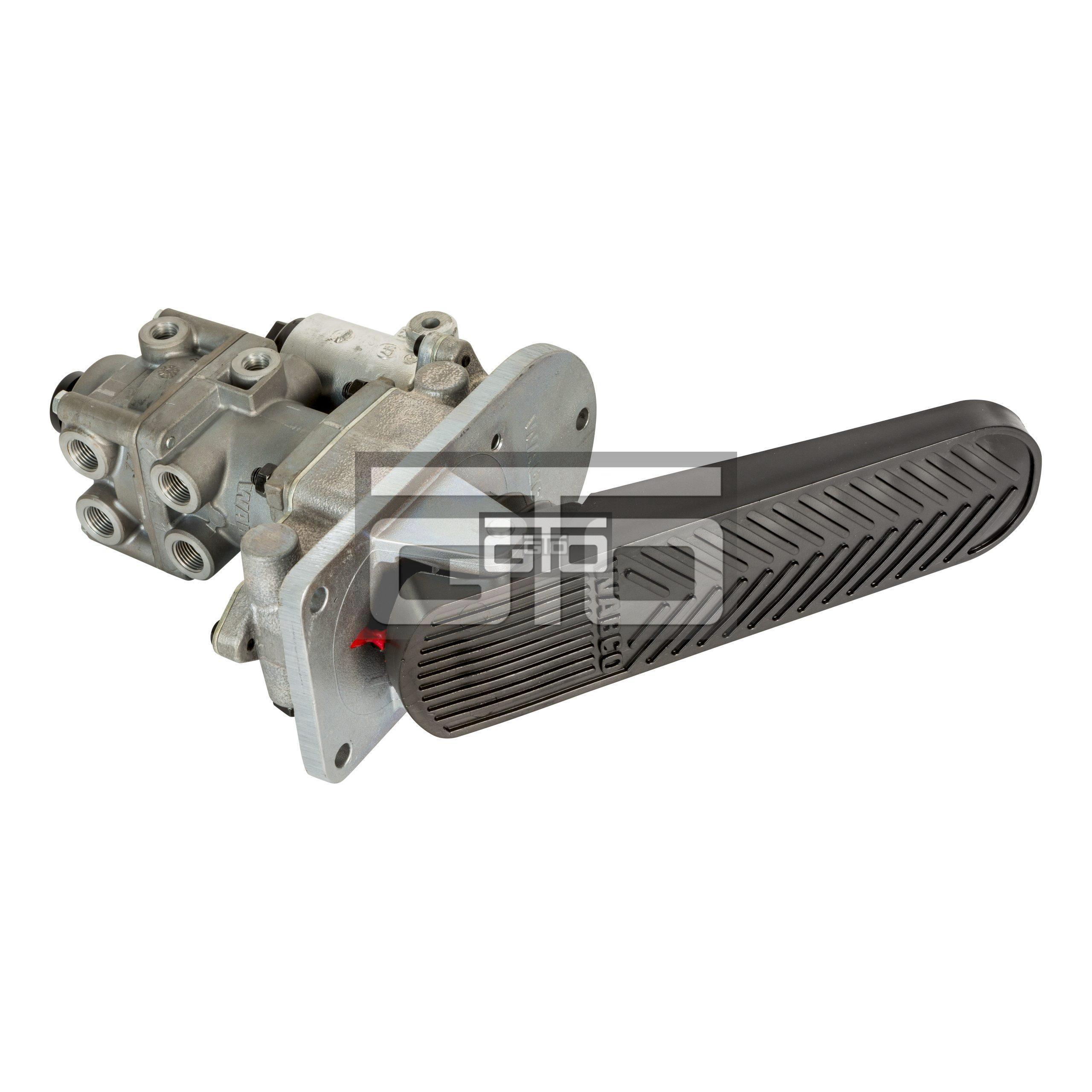

Foot Brake Valve
- Brand – Wabco Original
- Part type – Premium original quality
- Actuation – 4613247932
- Basic valve – 4613154890
- Calculated Volume (dm³) – 9.3322
- Distance between holes – 80×180 mm
- Exhaust – Snap-on contour
- Max. operating pressure – 10.0 bar
- Mounting – 3x Ø 9.5 mm
- Pedal angle – 35°
- Port thread 11 – M16 x 1.5
- Port thread 12 – M16 x 1.5
- Port thread 13 – M12 x 1.5
- Port thread 21 – M12 x 1.5
- Port thread 22 – M12 x 1.5
- Port thread 23 – M12 x 1.5
- Predominance – 0.30 bar
- Product category – Device
- Technical specification – OE specification
- Temperature range – -40°C to +80°C
- Type – Retarder Valve: 461 324 520 0
- Size (mm x mm x mm) – 248 x 355 x 106
- UPC – 193133304531
- Weight (kg) – 3.888
- Weight (lb) – 8.5716
Cross Reference :
- DF – 1518809
