Additional information
| Weight | 10,1 kg |
|---|---|
| Reference number | 1734797 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 21.61 |
| Clevis pin | 0.63 in |
| Cooling | Air |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 152.29 / 123.28 psi |
| Nominal diameter | 8.5 mm |
| Output force | 2338.01 lbf |
| Output force M | 2338.01 lbf |
| Port thread 11 | M16 x 1.5 JED – 152 |
| Push-rod length | 2.76 in |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 71.07 psi |
| Return-spring force | 103.41 lbf |
| Stroke | 2.56 / 2.56 in |
| Temperature range | -40°C to +80°C |
| Total lenght | 11.93 in |

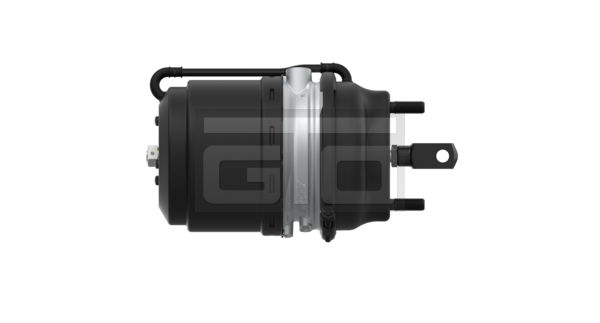

| Type | 30/30 |
| Type of operation | Cam |
| Version | Without boot |
| Wrench size | 0.94 in |
| Yoke | With |
| GTIN | 7895851030879 |
| Size (mm x mm x mm) | 490 x 210 x 210 |
| UPC | 193133352563 |
| Weight (kg) | 10.1 |
| Weight (lb) | 22.27 |
| Technical specification | OE specification |
| Brand | WABCO |
