Additional information
| Weight | 10,4 kg |
|---|---|
| Reference number | 1694697 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.32 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 18.9394 |
| Clevis pin | 0.55 in |
| Distance between bolts | 4.75 in |
| Max. operating pressure | 147.94 / 123.28 psi |
| Opposite | 925 499 011 0 |
| Output force 3 | 2540.34 lbf |
| Output force M | 2360.49 lbf |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port threads | M22 x 1.5 |
| Push-rod length | 3.35 in |
| Release pressure | 73.97 psi |
| Return-spring force | 56.20 lbf |
| Stroke | 2.56 / 2.56 in |
| Technical specification | OE specification |
| Total lenght | 10.71 in |

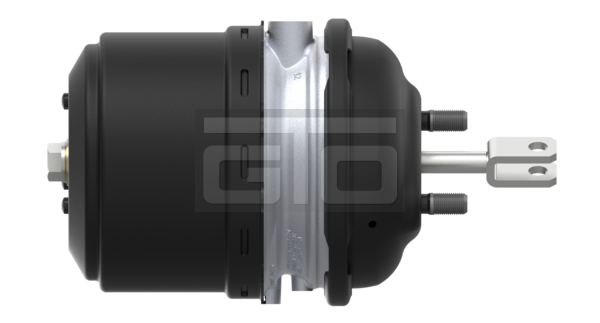

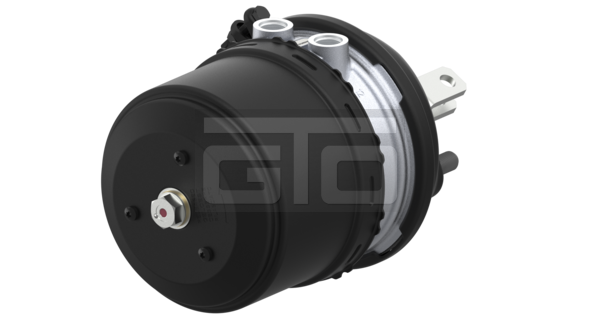

| Type | 27/30 IBV |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Welded |
| GTIN | 04057875287988 |
| Size (mm x mm x mm) | 383 x 230 x 215 |
| UPC | 193133359289 |
| Weight (kg) | 10.4 |
| Weight (lb) | 22.928 |
| Temperature range | -40°C to +80°C |
| Brand | WABCO |
