Description

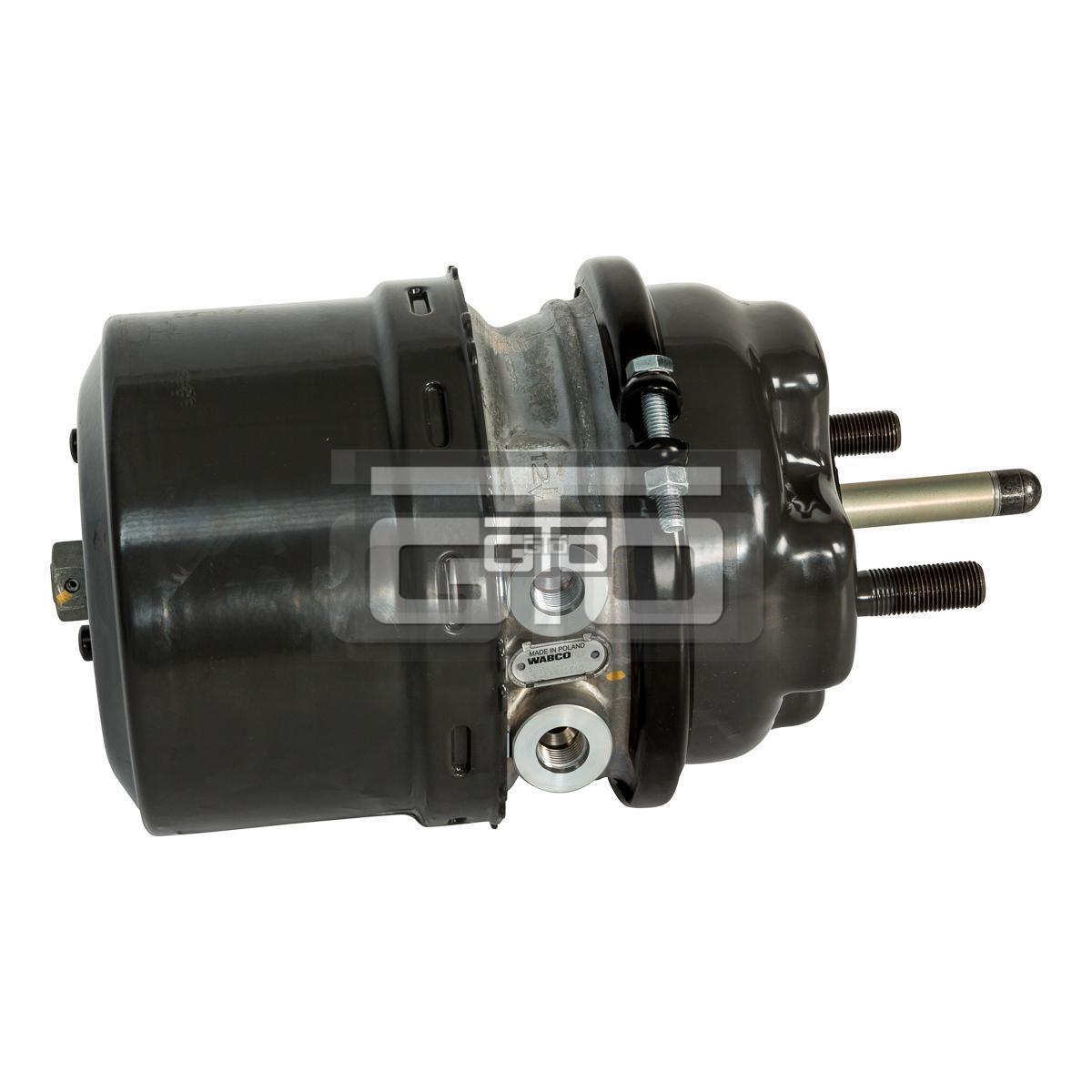

Tristop Cylinder Type 24/24
Brand – WABCO Original
Part type – Premium original quality
Bolt lengths – 43.0 mm
Bolt threads – M16 x 1.5
Calculated Volume (dm³) – 10.903
Distance between bolts – 120.6 mm
Max. operating pressure – 10.2/8.5 bar
Output force m – 600 N
Port thread 11 – M16 x 1.5 JED – 464-0
Port thread 12 – M16 x 1.5 JED – 464-0
Port threads – M16 x 1.5
Product category – Device
Push-rod length – 15 mm
Push-rod thread – Ball R8
Release pressure – 5.3 bar
Return-spring force – 200 N
Stroke – 65/64 mm
Technical specification – OE specification
Temperature range – -40°C to +80°C
Total length – 258.0 mm
Type – 24/24
Type of operation – Disc
Size (mm x mm x mm) – 299 x 187 x 195
UPC – 193133354413
Weight (kg) – 8.173
Weight (lb) – 18.018
RENAULT – 7420522029
VOLVO – 20466073
VOLVO – 20522029
VOLVO – 20409105
VOLVO – 21596226
