Additional information
| Weight | 0,618 kg |
|---|---|
| Reference number | F001858, 867880, 0867880, F00185802, F001858, 4110671, 1337422, F001858, 0867880, 5021170426, 1802088 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation | Black/Red |
| Calculated Volume (dm³) | 1.7205 |
| Distance between holes | 3.39 in |
| Max. operating pressure | 123.28 psi |
| Mounting | 2 x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 1-1 | M16 x 1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |

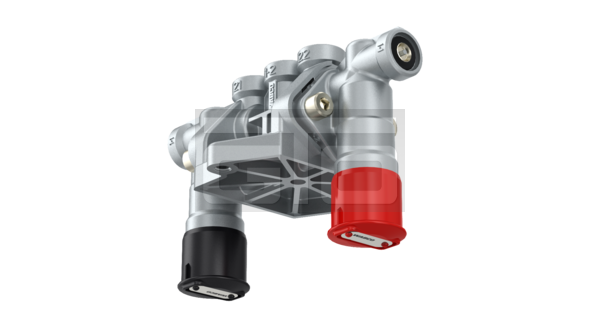

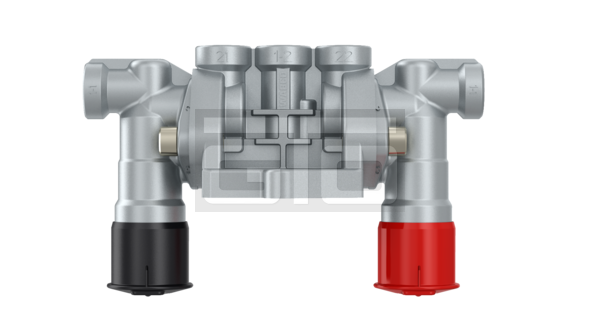

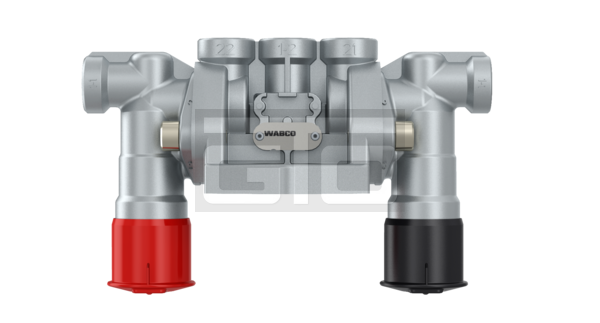

| Type | Double Release valve |
| GTIN | 04057875298526 |
| Size (mm x mm x mm) | 178.5 x 94.5 x 102 |
| Weight (kg) | 0.618 |
| Weight (lb) | 1.36 |
| UPC | 193133371731 |
| Brand | WABCO |
