Additional information
| Weight | 0,132 kg |
|---|---|
| Reference number | 1325328, 8283706000, 82838848550, 113667, 011626, TDAS9630010130, 163623, S963-001-013-0, S9710027030, 185055, 6300-9630010130, 6300-9710027030, 82523106008, S9630010130, S9710027030, 0308065, 08052, S963-001-013-0, S9710027030, 5021170425, 2090265, 2090082, 50309, 23740, 10976129, WAB9630010130, WAB9710027030, 1012003 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation | Black/Black |
| Application | 971 002 |
| Calculated Volume (dm³) | 0.2959 |
| Color | Knob – Black |
| Comments | With non-return valve |
| Distance between holes | 3.39 in |
| Max. operating pressure | 123.28 psi |
| Mounting | 2 x M8 – with flange |
| Port Thread 1-2 | 0.28 in |
| Port thread 1-1 | M22 x1.5 |
| Port thread 2 | Ø 0.86 in |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port threads | M22 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875298489 |
| Size (mm x mm x mm) | 90.5 x 54.5 x 60 |
| UPC | 193133449393 |
| Weight (kg) | 0.132 |
| Weight (lb) | 0.291 |

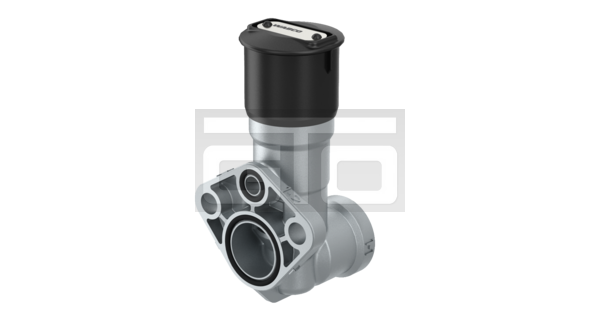

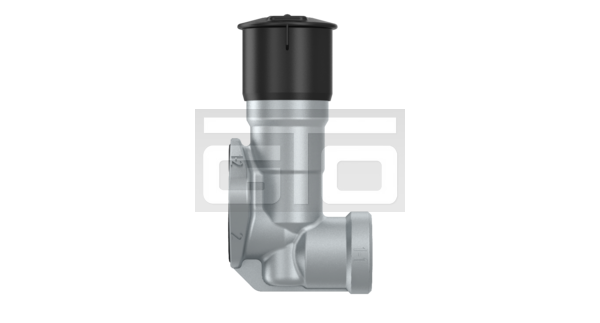

| Type | Double Release valve |
| Brand | WABCO |
