Additional information
| Weight | 0,15 kg |
|---|---|
| Reference number | 605323000, 1325331, 997904050, 1065271, 01020, 006712, AFA4271008, CF351221AJA09501, ASX0694001AFA0775, M059411, 152092, 9630060010, 08193547, 8193547, 2102005, S963-006-001-0, 945021, 500945021, 1133255, 4110241, FBU3268, A05020211, 6300-9630060010, 1065271, S9630060010, 07128000, 308063, 08054, 49501101000, AIF0772, S963-006-001-0, 5021170428, 2090268, 053010, 53010, 9141, 32413640, WAB9630060010, 1013065 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation | Black/Black |
| Calculated Volume (dm³) | 0.2354 |
| Color | Knob – Black |
| Comments | With flange |
| Distance between holes | 1.73 in |
| Max. operating pressure | 123.28 psi |
| Mounting | 2x Ø 8.5 mm – Flange |
| Port thread 1-1 | M22 x1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | M16 x1.5 |
| Port threads | M16 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |

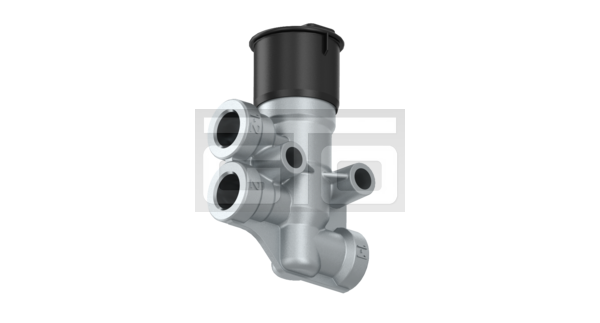

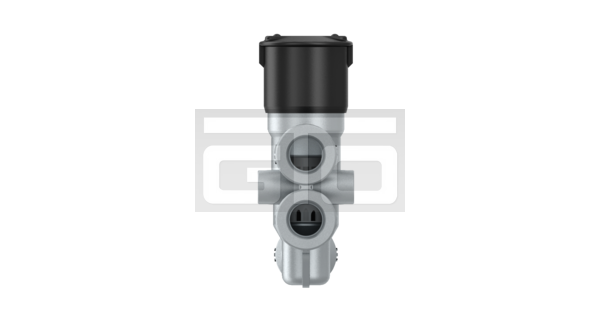

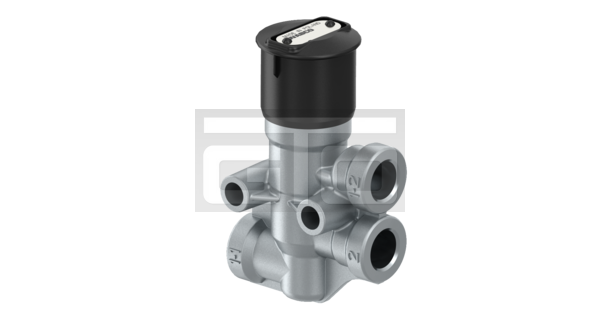

| Type | Release valve |
| GTIN | 7895851079946 |
| Size (mm x mm x mm) | 88.5 x 66.5 x 40 |
| Weight (kg) | 0.15 |
| Weight (lb) | 0.331 |
| UPC | 193133449416 |
| Brand | WABCO |
