Description

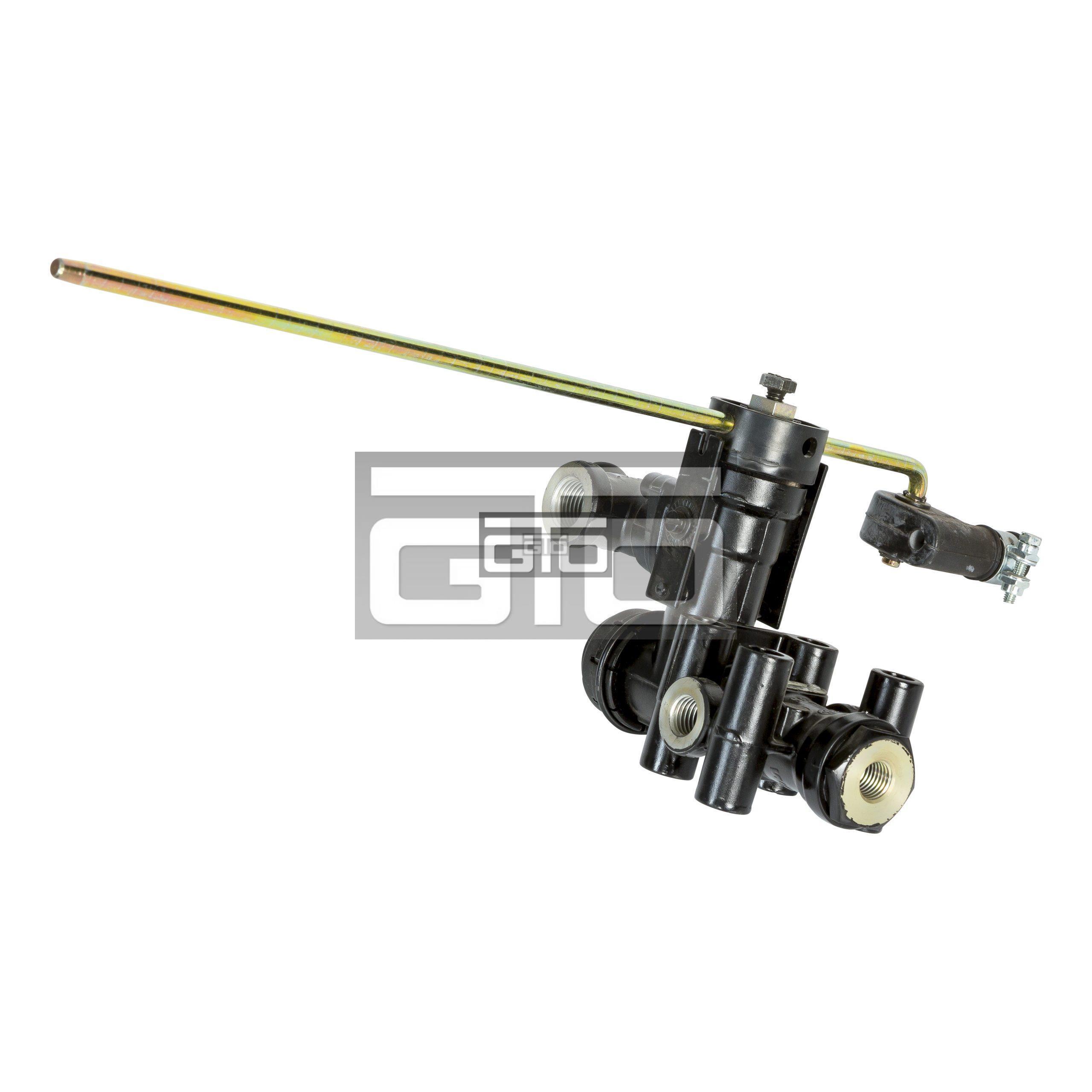

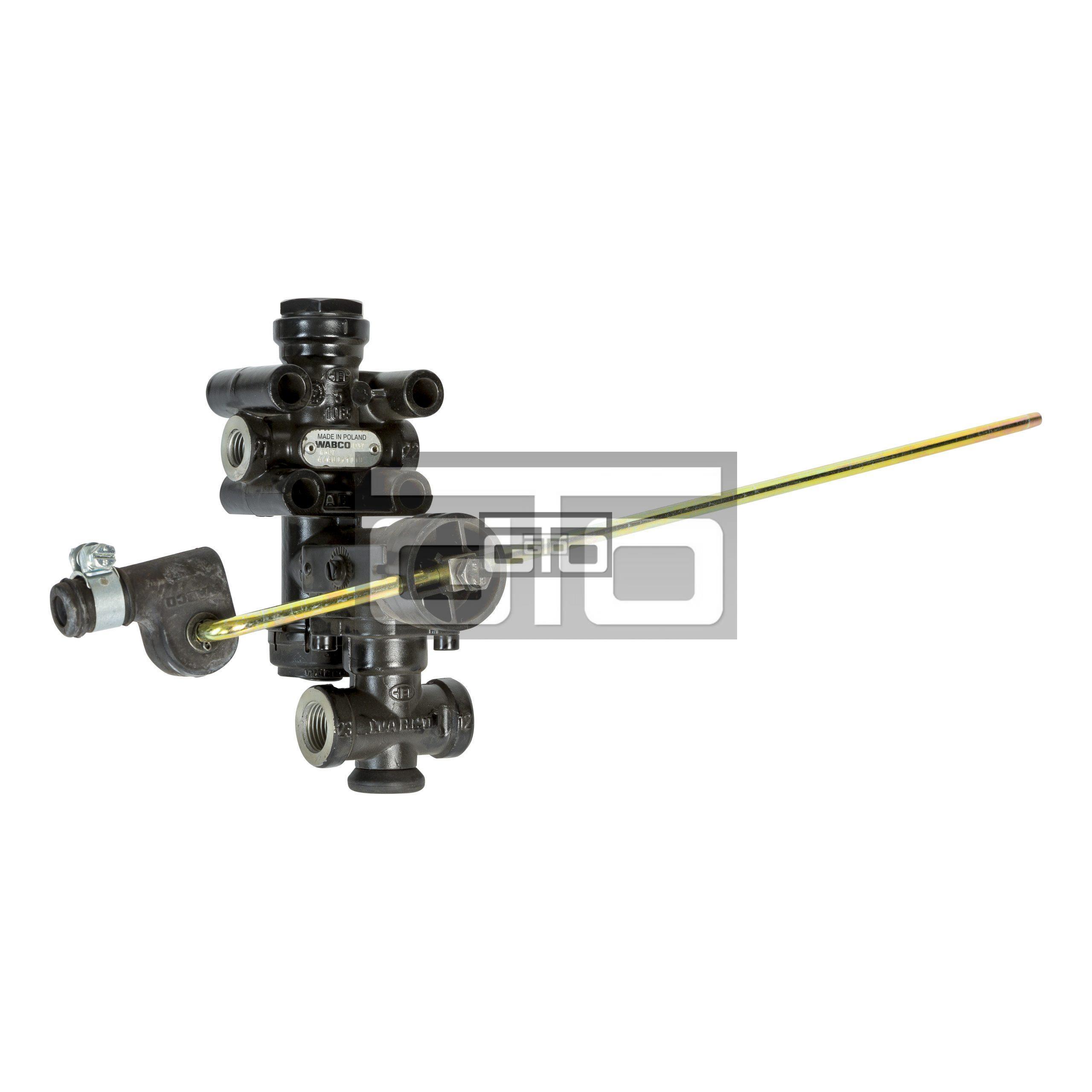

Trailer Chassis Levelling Valve
- Brand – Wabco Original
- Part type – Premium original quality
- Actuation angle – 90°
- Body material – Aluminium
- Calculated Volume (dm³) – 2.6719
- Comments – 2-circuit. Same as 4640061000, but black
- Distance between holes – 40/50 mm
- Max. operating pressure – 13.0 bar
- Mounting – 4x Ø 8.8 mm
- Nominal diameter – 3.0 mm
- Port thread 1 – M12 x 1.5
- Port thread 12 – M16 x 1.5
- Port thread 21 – M12 x 1.5
- Port thread 22 – M12 x 1.5
- Port thread 23 – M16 x 1.5
- Port thread 3 – Flap Exhaust
- Product category – Device
- Technical specification – OE specification
- Temperature range – -40°C to +80°C
- Type – 2-stage with regulation
- Version – With Lever
- Size (mm x mm x mm) – 349 x 116 x 66
- UPC – 193133308348
- Weight (kg) – 0.524
- Weight (lb) – 1.1552
Cross Reference :
- DF – 1518859
- SCANIA – 1738474
- SCHMITZ CARGOBULL – 1103985
