Description

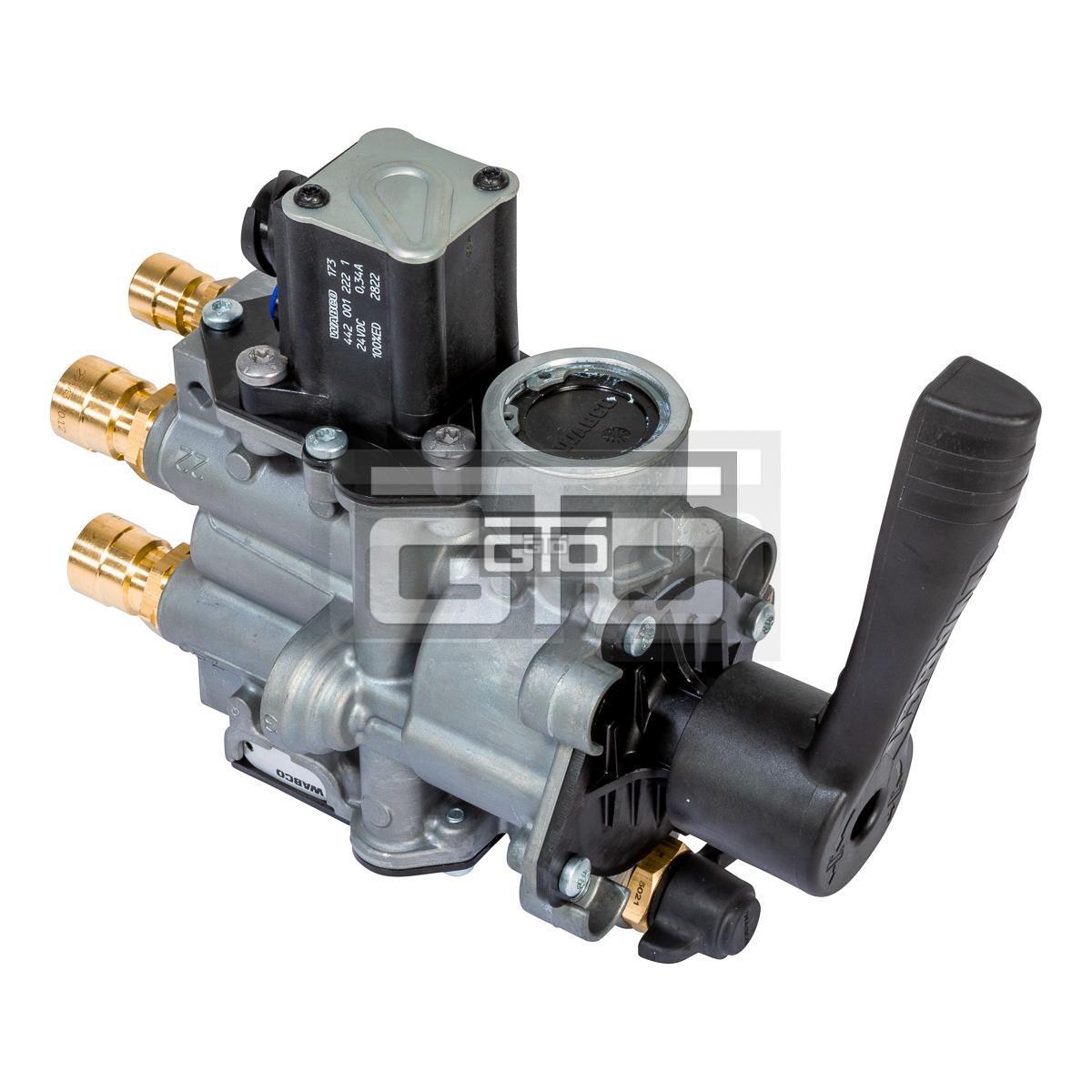

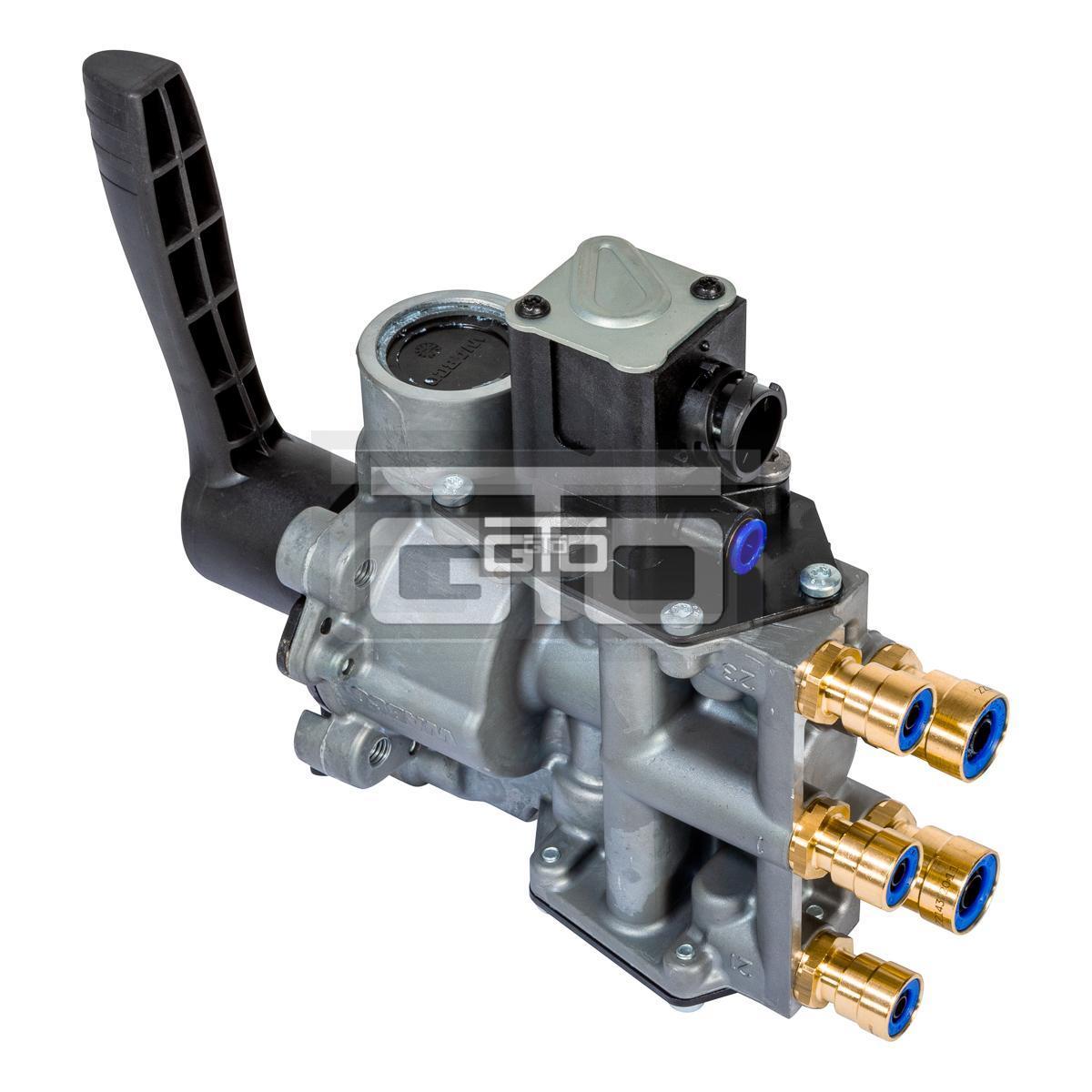

Trailer Air Suspension Control Valve
Calculated Volume (dm³) – 4.244
Distance between holes – 56.6 X 56.6 mm
Electrical connection – DIN 72585-A1-3.6-Sn/K2
Handle length – 122 mm
Max. operating pressure – 10.0 bar
Mounting – 4× M8
Port thread 1 – Ø 8 x 1
Port thread 1-1 – Ø 8 x 1
Port thread 21 – Ø 8 x 1
Port thread 22 – Ø 8 x 1
Port thread 23 – Ø 8 x 1
Port thread 24 – Ø 12 x 1.5
Protection class – IP 6K9K
Rated current – 0.34 A
Temperature range – -40 to +65 °C
Type – 2-circuit
Voltage – 24 V
