Additional information
| Weight | 32,5 kg |
|---|---|
| Reference number | A4571303815, 4571305015, A4571305015, 4571303815, A4571303815 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 46.2 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 LH |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 181.3 psi |
| Mounting | Mounting Flange |
| Operating speed | 3000 (1/min) |
| Piston diameter | 3.35 in |
| Piston stroke | 2.2 / 1.46 in |
| Port thread 0 | 0.98 in |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M10 x 1.5 |
| Port thread 8.1 | Ø 0.16 in |
| Port thread 8.2 | Ø 0.62 in |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Technical specification | OE specification |

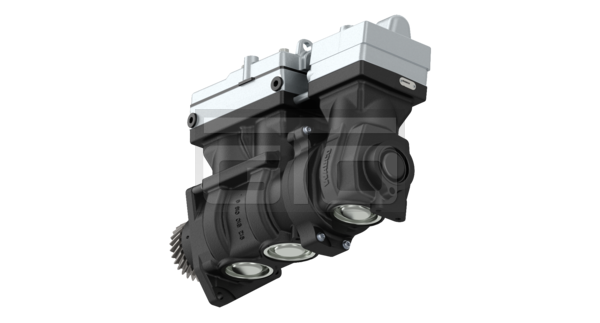

| Type | Triple Cylinder |
| GTIN | 04057875274292 |
| Size (mm x mm x mm) | 280 x 330 x 500 |
| UPC | 193133494966 |
| Weight (kg) | 32.5 |
| Weight (lb) | 71.6502 |
| Swept volume (cm³) | 636/210 cm<sup>3</sup> |
| Brand | WABCO |
