€761,25

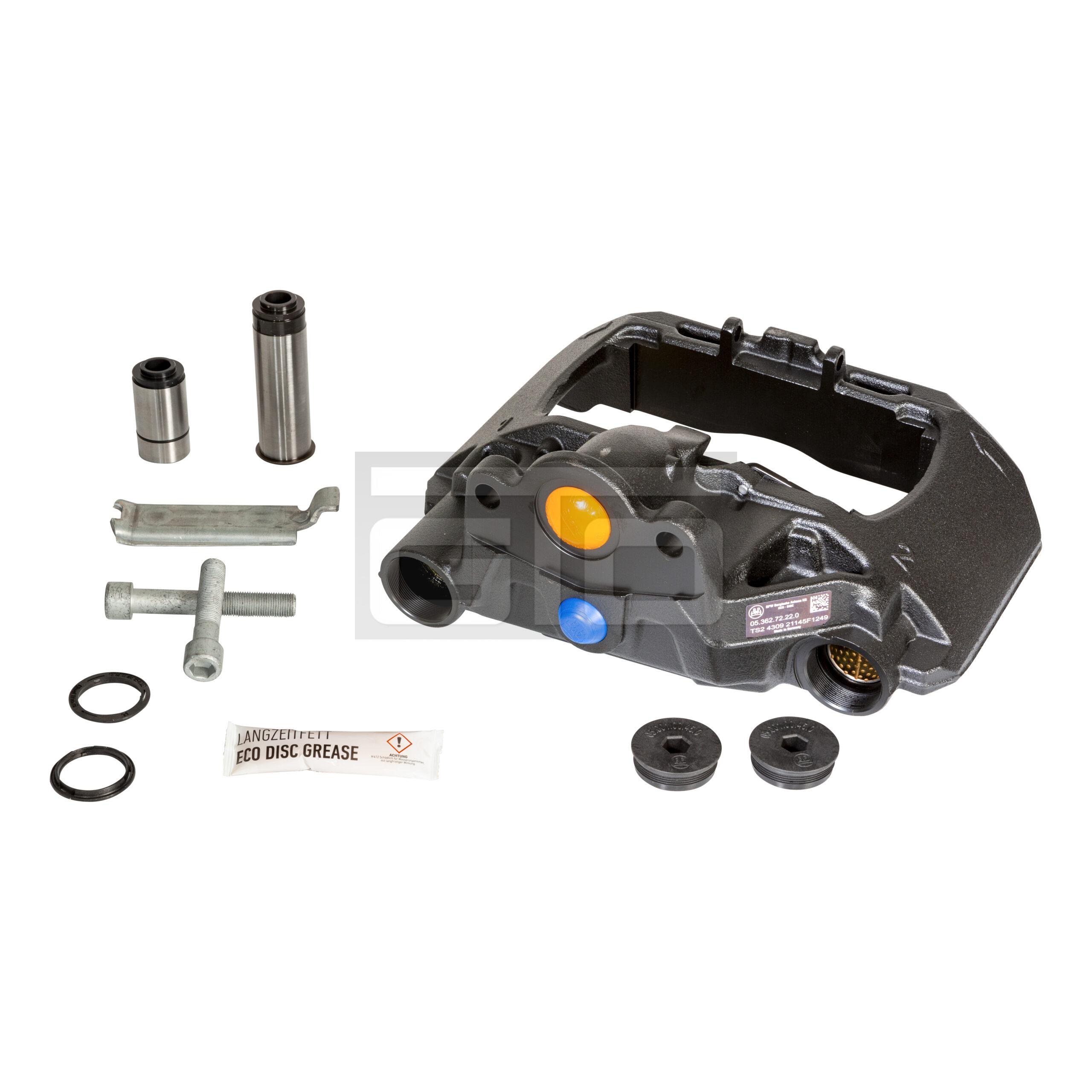

BPW replacement brake caliper ( pre greased )
incl. guide pins and attachment parts
brake caliper without brake pad
– BPW0936272420
– 0936272420
– 09.362.72.42.0
09.362.72.22.0 replaced by 09.362.72.32.0
09.362.72.32.0 replaced by 09.362.72.42.0
Only 1 left in stock
Important installation instruction:
First fit cylinder head screw 325 in the long fixed bearing (mark 1 on the brake caliper)
Then cylinder head screw 345 in the short floating bearing (mark 2 on the brake caliper)
Tighten at the tightening torque of 260 Nm (250 – 270 Nm).
| Weight | 25,38 kg |
|---|---|
| Referentienr. | 09.362.72.42.0: passend voor BPW |
| Gewicht | 24.91 kg / Item |
| Verpakkingseenheid | 1 Item |
| Reference | BPW0936272420, 0936272420, 09.362.72.42.0 |
| Brand | BPW |

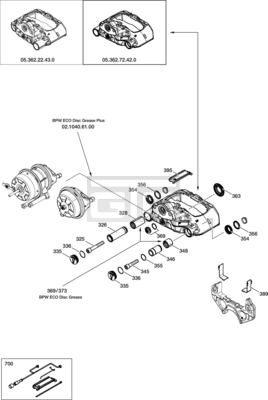

| Pos. | Item No. | Article description | Content |
|---|---|---|---|
| 323 | BPW0980108691 | REPAIR KIT RETENTION BARS TS2 3709/4309 | 1 |
| 325 | BPW0334012320 | CYLINDER CAP SCREW M16X1,5X103/4762GEO10.9 | 1 |
| 345 | BPW0334012310 | CYLINDER CAP SCREW M16X1,5X_73/4762GEO10.9 | 1 |
| 361 | BPW0980108810 | RS-BELLOW TS2 3709/4309 | 1 |
| 369 | BPW0580146650 | ASSY KIT TS2 SCREW O-RING | 1 |
| 373 | BPW0210406000 | GREASE ECO-DISC 25 g | 1 |
