Additional information
| Weight | 0,77 kg |
|---|---|
| Reference number | 1504903, ZG046560002, 1504903, 1342598, 1350118, 1425183, 1935660 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 1.076 |

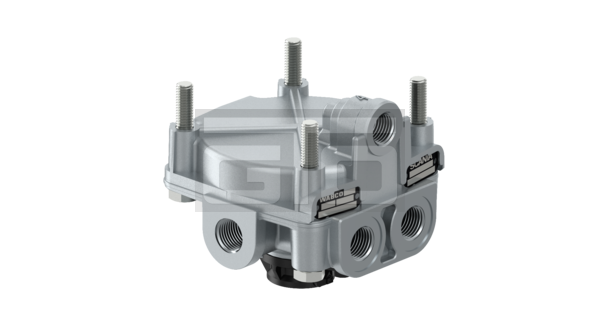

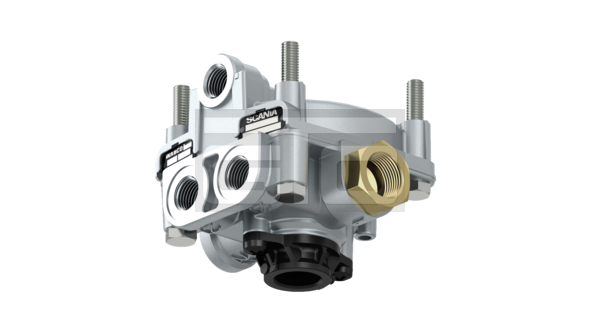

| Comments | Relay valve with integral non return valve |
| Exhaust | Snap on contour JED – 463 |
| Max. operating pressure | 188.55 psi |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | 2x M16 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 152 |
| Port thread 3 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Predominance | 14.50 psi |
| Regulating ratio | 1:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | Pressure reduction |
| GTIN | 7895851023895 |
| UPC | 193133377931 |
| Weight (kg) | 0.77 |
| Weight (lb) | 1.6976 |
| Size (mm x mm x mm) | 101 x 111 x 96 |
| Brand | WABCO |
