Additional information
| Weight | 2,075 kg |
|---|---|
| Reference number | 1519309, 150964, 2480080, WZ2480080, 2101009, 79500, 2090078 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 5.768 |

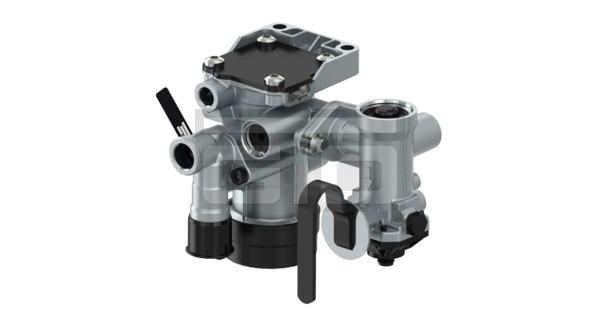

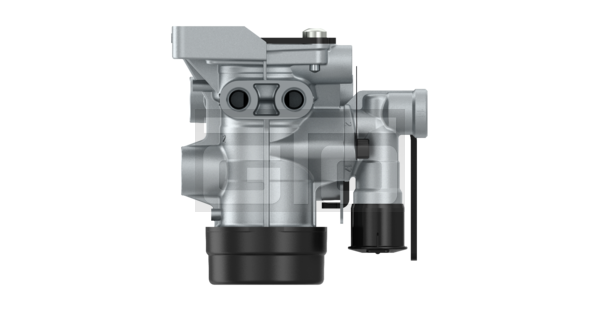

| Comments | Combination of 9710020300, manual LSV 4756040430 and release valve 9630010130 |
| Distance between holes | 2.8 Inch |
| Max. operating pressure | 1.0 MPa |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 2x M16 x 1.5 JED-152 / 1x M22 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED-152 |
| Predominance | 0 |
| Range of adjustment | 0.07 Mpa |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057885168130 |
| UPC | 193133536611 |
| Weight (kg) | 2.075 |
| Weight (lb) | 4.575 |
| Size (mm x mm x mm) | 169 x 205 x 166.5 |
| Brand | WABCO |
