Additional information
| Weight | 2,097 kg |
|---|---|
| Reference number | 1519307, 1518260, 200211, AZ50946, 2101008, 2101019, S971-002-570-0, 500945148, 945079, 945148, 1133362, S9710025700, 7101000, S971-002-570-0, 2090076, 2090074, 050012, 50012, 050022, 054676, 54676 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 6.915 |

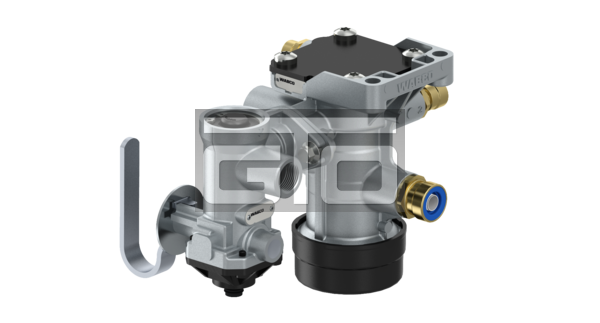

| Comments | Combination of 9710020300, manual LSV 4756040410 and release valve 9630010130 with fittings |
| Distance between holes | 2.8 Inch |
| Max. operating pressure | 1.0 MPa |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | Ø 15×1.5 |
| Port thread 2 | 2x Ø 10×1 / 1x M22 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | Ø 8×1 |
| Predominance | 0 |
| Range of adjustment | 0.07 Mpa |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057876223527 |
| UPC | 193133536628 |
| Weight (kg) | 2.097 |
| Weight (lb) | 4.623 |
| Size (mm x mm x mm) | 226 x 180 x 170 |
| Brand | WABCO |
