Additional information
| Weight | 0,617 kg |
|---|---|
| Reference number | 1506177, A0021406160, 201806, YC442C229AA, 41030395, 41030395, A0021406160, 1934982, 20235252, 235252 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 0.48044 |
| Distance between holes | 1.65 in |
| Electrical connection | Bayonet |
| Max. operating pressure | 159.54 psi |
| Mounting | 2x Ø 9.0 mm |
| Multi Nominal diameter (From Port 1 to x) | 0.16 / 0.10 in |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Rated current | 570 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |

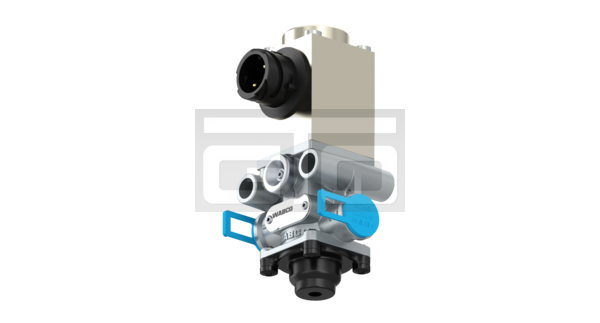

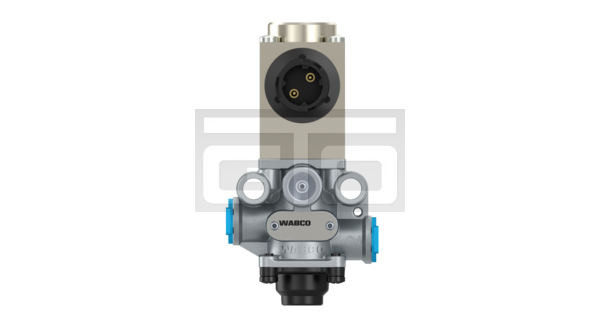

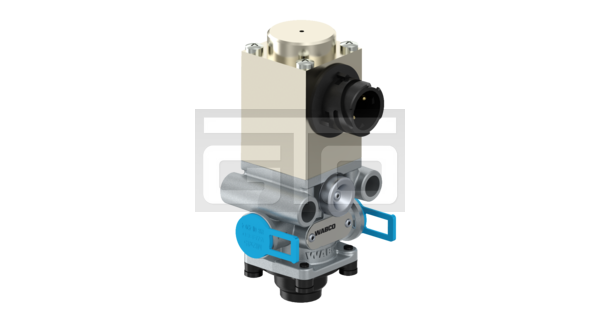

| Type | Proportional valve |
| Voltage | 24 V |
| GTIN | 04057875219514 |
| UPC | 193133465140 |
| Weight (kg) | 0.617 |
| Weight (lb) | 1.3603 |
| Size (mm x mm x mm) | 123 x 62 x 63 |
| Brand | WABCO |
