Additional information
| Weight | 0,572 kg |
|---|---|
| Reference number | 4785080, 04785080, 4785080, 4700966, 478508 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 0.86304 |
| Comments | Stroke not limited internal |
| Diameter | 1.69 in |
| Inlet port | M12x1.5 |
| Length | 255 mm |
| Max. operating pressure | 145.04 psi |
| Mounting | Ø 8.2 mm |
| Output force | 94.42 lbf |
| Piston Force | 94 lbf |
| Piston diameter | 1.38 in |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Push-rod thread | M12 x 1.5 |
| Return-spring force | 61.82 lbf |
| Stroke | 3.35 in |
| Technical specification | OE specification |
| Total lenght | 9.17 in |

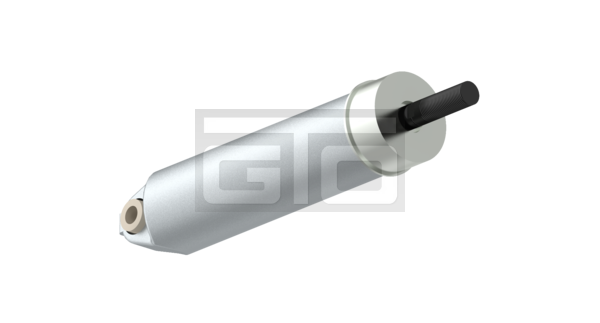

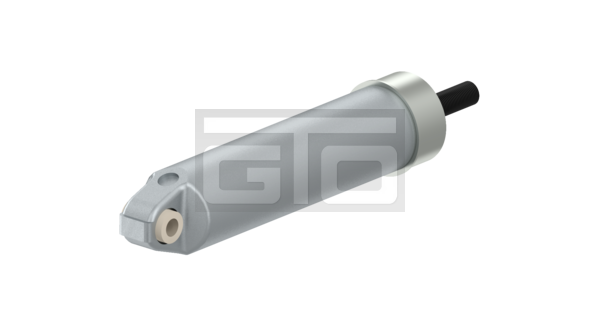

| Type | Single-acting Cylinder |
| Wrench size | 10 mm |
| GTIN | 04057875160083 |
| Size (mm x mm x mm) | 60 x 248 x 58 |
| Weight (kg) | 0.572 |
| Temperature range | -25°C to +120°C |
| Brand | WABCO |
