Additional information
| Weight | 0,439 kg |
|---|---|
| Reference number | 9500990, 1507790, 1821737 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Component |
| Calculated Volume (dm³) | 0.4212 |
| Diameter | 1.69 in |
| Inlet port | M12x1.5 |
| Length | 180 mm |
| Max. operating pressure | 145.04 psi |
| Mounting | ø16 mm |
| Output force | 94.42 lbf |
| Piston Force | 94 lbf |
| Piston diameter | 1.38 in |
| Port thread 1 | M12 x 1.5 |
| Push-rod thread | M8 |
| Return-spring force | 42.71 lbf |
| Stroke | 2.36 in |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Total lenght | 7.09 in |
| GTIN | 7895851033047 |
| Size (mm x mm x mm) | 195 x 45 x 48 |
| UPC | 193133479444 |
| Weight (kg) | 0.439 |
| Weight (lb) | 0.96783 |

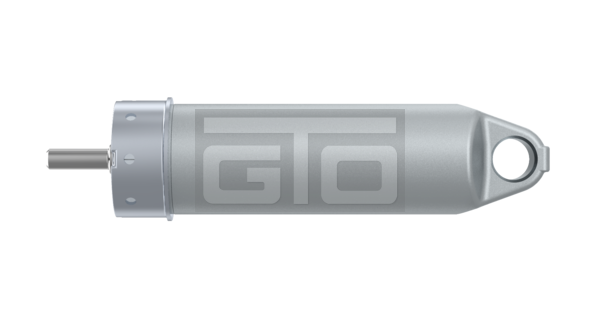

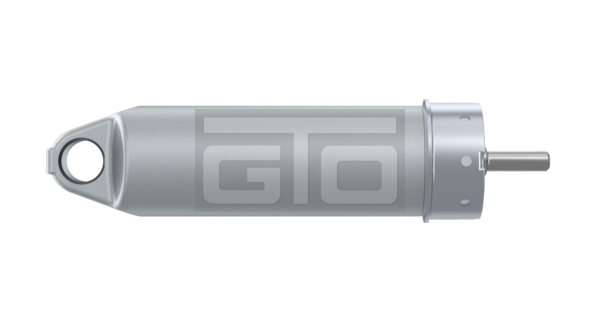

| Type | Single-acting Cylinder |
| Brand | WABCO |
