Additional information
| Weight | 0,572 kg |
|---|---|
| Reference number | 1528890, 1438902, 1926101 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Component |
| Calculated Volume (dm³) | 0.53345 |
| Diameter | 2.17 in |
| Inlet port | M12x1.5 |
| Length | 167 mm |
| Max. operating pressure | 174.05 psi |
| Mounting | Ø 16.5 mm |
| Output force | 241.67 lbf |
| Piston Force | 281 lbf |
| Piston diameter | 1.97 in |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1 |
| Push-rod thread | M10 |
| Return-spring force | 39.34 lbf |
| Stroke | 2.09 in |
| Technical specification | OE specification |
| Temperature range | -25°C to +190°C |

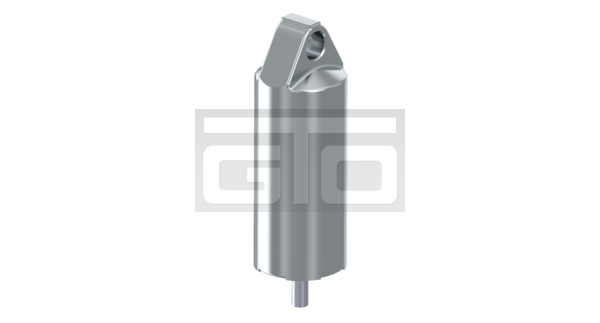

| Type | Single-acting Cylinder |
| GTIN | 04057875160212 |
| Size (mm x mm x mm) | 53 x 183 x 55 |
| UPC | 193133243106 |
| Weight (kg) | 0.572 |
| Weight (lb) | 1.261 |
| Total lenght | 6.56 in |
| Brand | WABCO |
