Additional information
| Weight | 1,918 kg |
|---|---|
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Break point | 7.3 psi |
| Calculated Volume (dm³) | 7.843 |
| Distance between bolts | 3.31×3.31 in |
| Exhaust | Snap on contour JED – 463 |
| Max. operating pressure | 188.5 psi |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Range of adjustment | 49.31 to 63.82 psi |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |

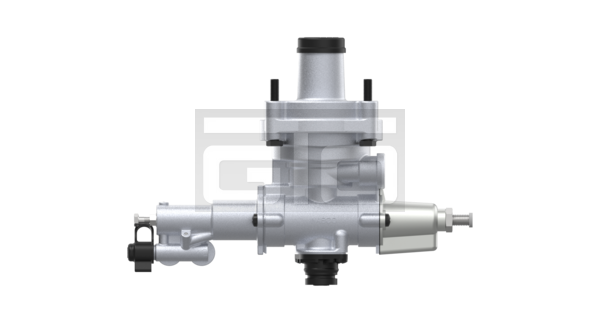

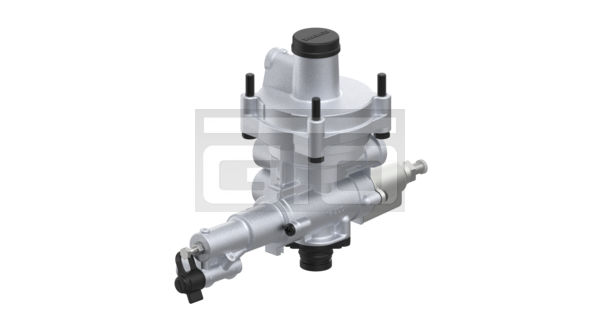

| Type of operation | Relay Valve |
| GTIN | 04057875225355 |
| UPC | 193133314646 |
| Weight (kg) | 1.918 |
| Weight (lb) | 4.2285 |
| Size (mm x mm x mm) | 310 x 110 x 230 |
| Brand | WABCO |
