Additional information
| Weight | 1,954 kg |
|---|---|
| Reference number | 1302087, 1290287, 1935097 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Break point | 7.3 psi |
| Calculated Volume (dm³) | 9.2245 |
| Comments | With silencer |
| Control pressure | 13 bar |
| Distance between bolts | 3.31×3.31 in |
| Exhaust | With silencer |
| Inlet Pressure | 145.0 psi |
| Max. operating pressure | 188.5 psi |
| Mounting | 4x M8 |
| Operational range | 0.8 to 8.0 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Port thread 41 | M16 x 1.5 JED-388 |
| Port thread 42 | M16 x 1.5 JED-388 |
| Range of adjustment | 11.60 to 116.03 psi |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |

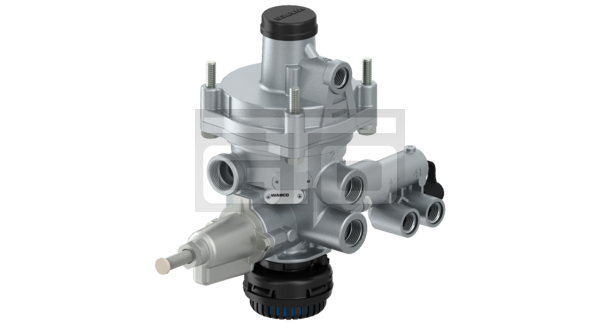

| Type of operation | Relay Valve |
| GTIN | 04057875225539 |
| Size (mm x mm x mm) | 319 x 243 x 119 |
| UPC | 193133314844 |
| Weight (kg) | 1.954 |
| Weight (lb) | 4.3078 |
| Regulating ratio | 1:8 |
| Brand | WABCO |
