Description

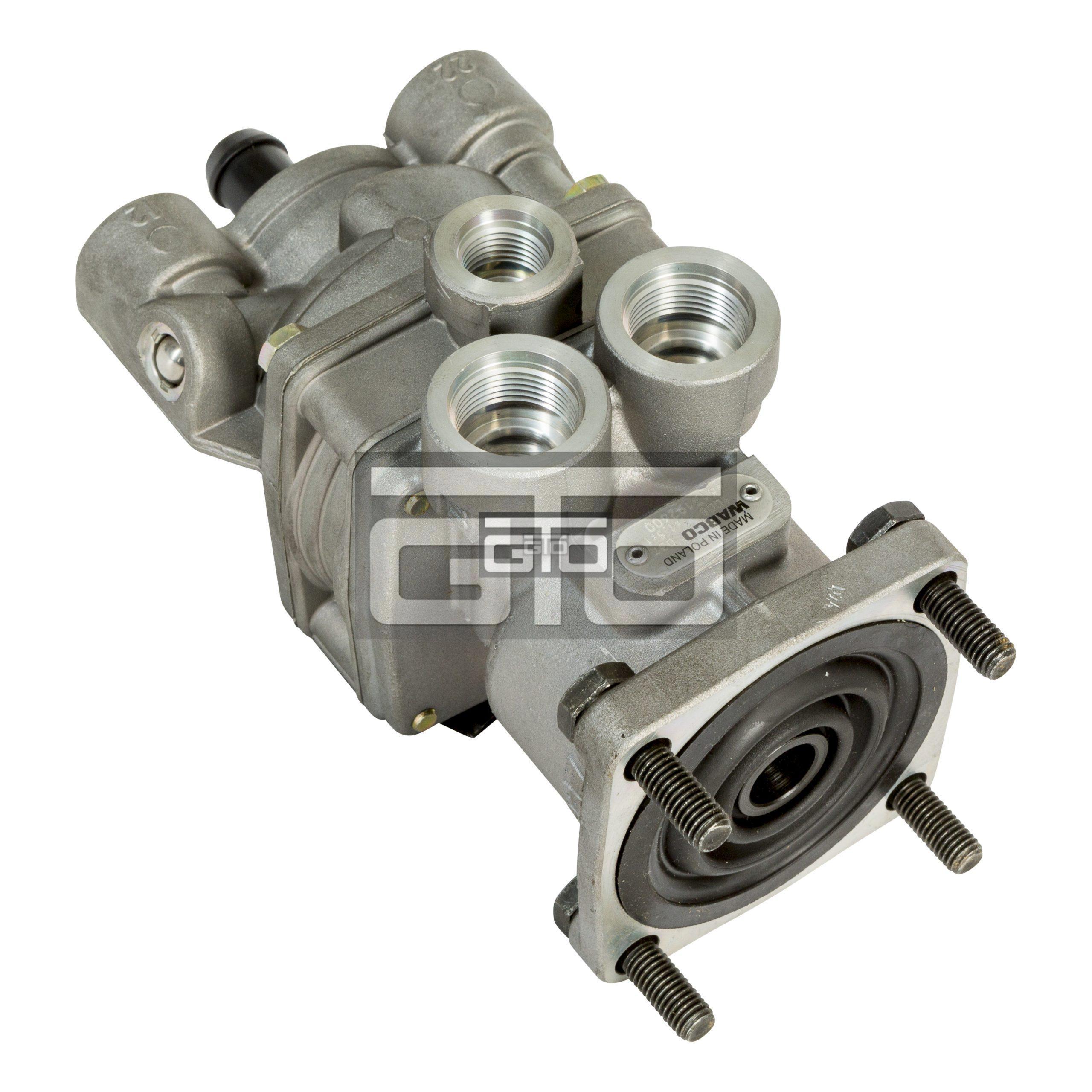

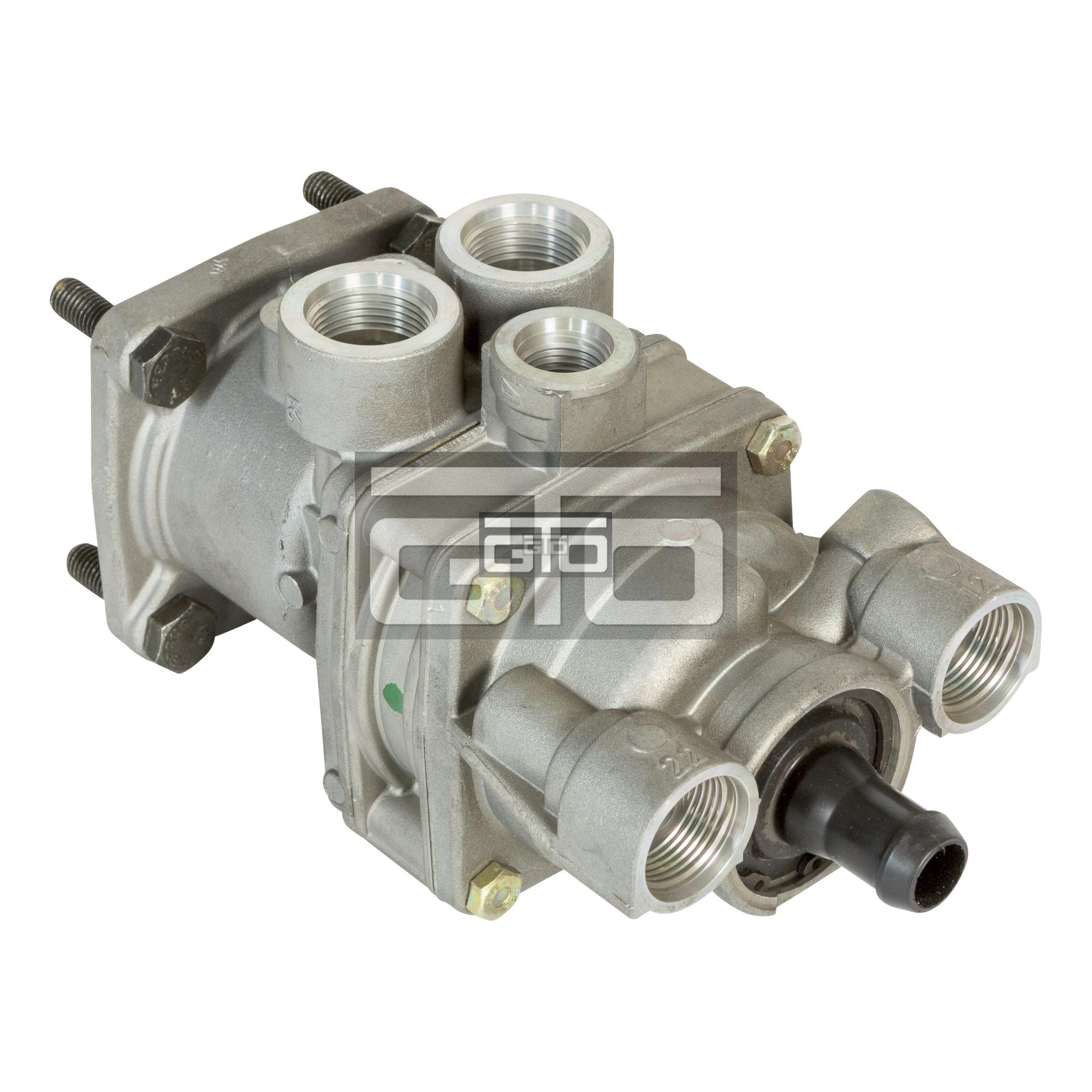

Footbrake Valve
- Brand – Wabco Original
- Part type – Premium original quality
- Calculated Volume (dm³) – 1.919
- Comments – 4 Studs M8x20. For voss push-in fittings
- Distance between holes – 61×61 mm
- Exhaust – Union
- Max. operating pressure – 10.0 bar
- Mounting – 4x M8
- Port thread 11 – M22 x 1.5
- Port thread 12 -M22 x 1.5
- Port thread 21 – M22 x 1.5
- Port thread 22 – M22 x 1.5
- Port thread 3 – Union
- Port thread 4 – M16x1.5 JED – 388
- Predominance – 0.40 bar
- Product category – Device
- Technical specification – OE specification
- Temperature range – -40°C to +80°C
- Size (mm x mm x mm) -200 x 95 x 101
- UPC -193133304289
- Weight (kg) – 1.317
- Weight (lb) – 2.9035
Cross Reference :
- DF – 1506092
- EVOBUS – A0024318105
- MERCEDES-BENZ – 0024317005
- MERCEDES-BENZ – 0024318105
- MERCEDES-BENZ – 0024318805
- MERCEDES-BENZ – 9924318105
- MERCEDES-BENZ – A0024318105
