Additional information
| Weight | 4,18 kg |
|---|---|
| Reference number | 1305452, 0003276825, 81259026147, 81259056147, A0003276825, 39326, 066526, 4C463038BA, S472-905-111-0, VS70000158, 337816, 1111650, 1305452, A05021233, 6300-4729051110, 81259026147, 81259029147, 81259056147, 0003276825, 1305452, 81.25902-6147, 0003276825, A0003276825, 1305452, 81259026147, S4729051110, 81259026147, 495158, S472-905-111-0, 1453164, 1934999, INS0330007, 94155, 1196822, WA4729051110, WAB4729051110 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | Rear axle |
| Calculated Volume (dm³) | 5.1992 |

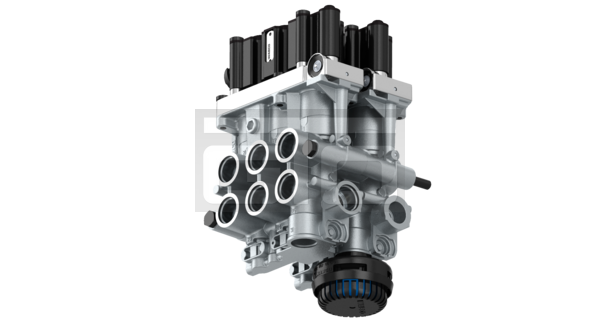

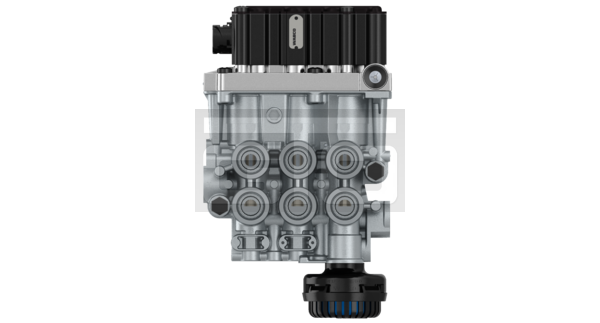

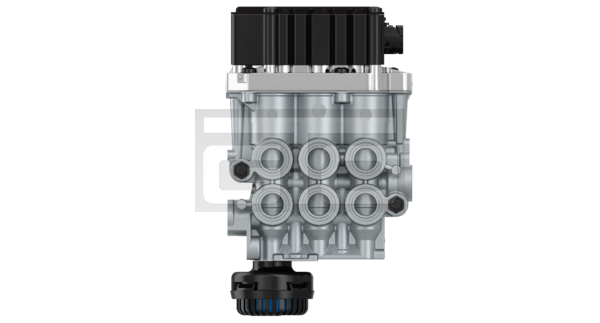

| Comments | ECAS solenoid block for drive axle+lift axle mounting position: solenoid connections on top |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 290.1 psi |
| Mounting | 2 x M8 |
| Multi Nominal diameter (From Port 1 to x) | 0.39 / 0.28 / 0.34 in |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 25 | M22 x 1.5 JED-388 |
| Port thread 26 | M22 x 1.5 JED-388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Port threads | M22 x 1.5 JED-388 |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851051027 |
| Size (mm x mm x mm) | 253 x 150 x 137 |
| UPC | 193133444084 |
| Weight (kg) | 4.18 |
| Weight (lb) | 9.2153 |
| Protection class | IP 6K9K |
| Brand | WABCO |
