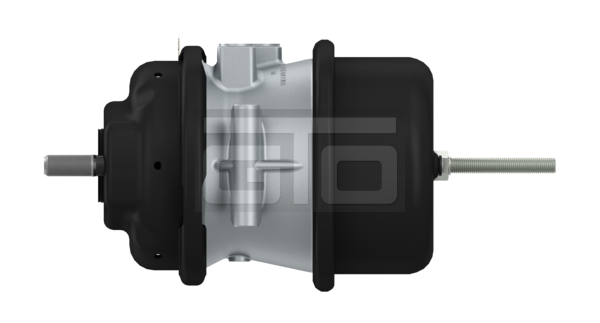

Additional information
| Weight | 7,102 kg |
|---|---|
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Bolt lengths | 1.69 in |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 11.951 |
| Clamp band | Ø 178 mm |
| Clamp band position | 160° |
| Diameter | 7.24 in |
| Distance between bolts | 4.75 in |
| Length | 240.5 mm |
| Max. operating pressure | 152.29 / 123.28 psi |
| Port angle | Position Side port 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Push-rod length | 0.59 in |
| Push-rod thread | Ball R8 |
| Release pressure | 73.97 psi |
| Return-spring force | 44.96 lbf |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total lenght | 12.97 in |
| Type | 20/24 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875278368 |
| Size (mm x mm x mm) | 370 x 170 x 190 |
| UPC | 193133349112 |
| Weight (kg) | 7.102 |
| Weight (lb) | 15.657 |
| Stroke | 2.52 in |
| Brand | WABCO |
