Additional information
| Weight | 0,539 kg |
|---|---|
| Reference number | 2D763781926, 7098486, 063066, 169968, 339079, 1233566, 6281002, 910015-00020, 3323122, 16124, AIF1181, 1788958, A8188-011900, 21180190013, 10751356, 1070044 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Application | Lift Axle Control Valve, EBS |

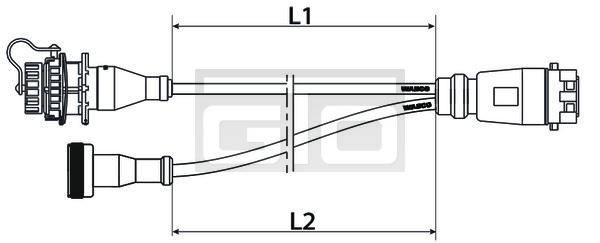

| Cable end (left side of diagram) | Diagnosis socket with blue cap 7-pin + Kostal M27x1 2-pin |
| Cable end (right side of diagram) | X2 diagnosis 8-pin |
| Calculated Volume (dm³) | 5.7054 |
| Comments | Length: L1/L2 |
| Length L1 | 19.69 ft |
| Length L2 | 6.6 ft |
| Port threads | M27 x 1 |
| Ports | Diagnosis |
| Technical specification | OE specification |
| Total lenght | 236.22 / 78.74 in |
| Type | Y |
| GTIN | 04057875203773 |
| Size (mm x mm x mm) | 374 x 339 x 45 |
| UPC | 193133297932 |
| Weight (kg) | 0.539 |
| Weight (lb) | 1.1883 |
| Brand | WABCO |
