Additional information
| Weight | 2,927 kg |
|---|---|
| Reference number | 7102114, 169197 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |

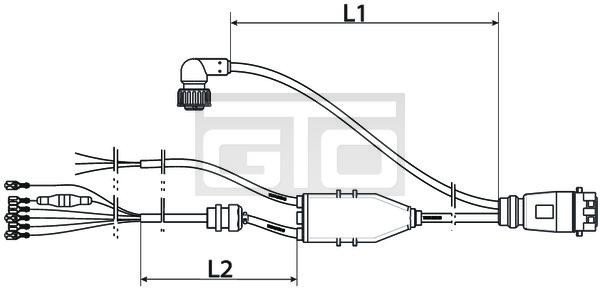

| Cable end (left side of diagram) | Bayonet socket ISO 15170-B1-3.1-Sn/K1 4-pin + open 3-strand (3 x 1.5 mm²) + open 6-strand with push-on contacts (5 x 1.5 mm² 1 x 0.5 mm²) |
| Cable end (right side of diagram) | X6 auxiliary plug 8-pin |
| Calculated Volume (dm³) | 15.6788 |
| Length L1 | 39.37 ft |
| Length L2 | 26.2 ft |
| Technical specification | OE specification |
| GTIN | 04057875201007 |
| Size (mm x mm x mm) | 331 x 382 x 124 |
| UPC | 193133295631 |
| Weight (kg) | 2.927 |
| Weight (lb) | 6.4529 |
| Brand | WABCO |
