Additional information
| Brand | WABCO |
|---|---|
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 0 |
| Con-rod length | 5.12 in |
| Distance between holes | 5.12 in |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 373 mm |
| Max. operating pressure | 145.04 psi |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 3.35 in |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |

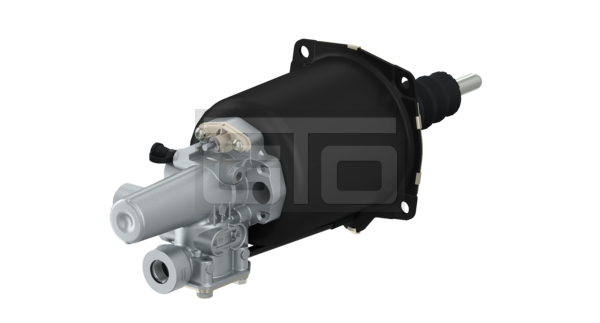

| Type | Clutch Servo |
| GTIN | 04057875342403 |
| UPC | 193133416449 |
| Weight (kg) | 0 |
| Weight (lb) | 0 |
| Test connection | 1-4 (M14 x 1.5) & 11 (M16 x 1.5) |
| Brand | WABCO |
