Additional information
| Weight | 1,907 kg |
|---|---|
| Reference number | 654731, 614664, F001165, 1325325, ACU9430, 8143147, 8285274000, A6984313712, 4829, 066012, 5100655000, 90DB2K433BA, TDAS4757145000, CF351826, F001165, 156864, NB1781, 3300868, 3300868, 3300868R1, 2203004, S4757145000, 945013, 9450130, 5009450130, 82852740000, 8285274000, 6502186, 351000, 76934, 111723, 4110161, ACU9340, ACHD514, 502923801, 6300-4757145000, 0005661809, 6984313712, A6984313712, S4757145000, 110245700, 11017344, 07143000, 308051, 08390C, 49500021000, AIF0818, CV118435, S4757145000, 4425011700, 04425011700, 2090019, 050036, 8285274000, 82852740000, 730572, 56835, 056835, 3300868R1, 637211120, WAB4757145000, 1013142 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Break point | 7.3 psi |
| Calculated Volume (dm³) | 8.6486 |

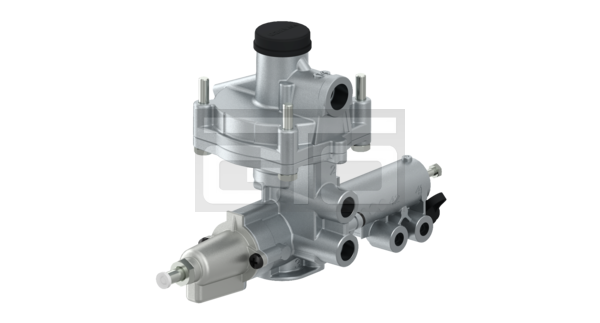

| Comments | Universal static type valve for trailers |
| Distance between bolts | 3.31×3.31 in |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (<a href="https://www.wabco-customercentre.com/solutioncentre/s/article/Diagnostics-resource-centre?language=en_US" target="_blank">Click here</a> ) |
| Max. operating pressure | 174 psi |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M16 x 1.5 |
| Port thread 4 | M22 x 1.5 |
| Port thread 41 | M12 x 1.5 |
| Port thread 42 | M12 x 1.5 |
| Port thread 43 | Test port |
| Regulating range | 10.15 to 55.11 psi |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Type | Pneumatic |
| Type of operation | Static |
| GTIN | 04057875225928 |
| Size (mm x mm x mm) | 308 x 195 x 144 |
| UPC | 193133444459 |
| Weight (kg) | 1.907 |
| Weight (lb) | 4.2042 |
| Temperature range | -40°C to +80°C |
| Brand | WABCO |
