Additional information
| Weight | 5,656 kg |
|---|---|
| Reference number | 1518168 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 16.4346 |

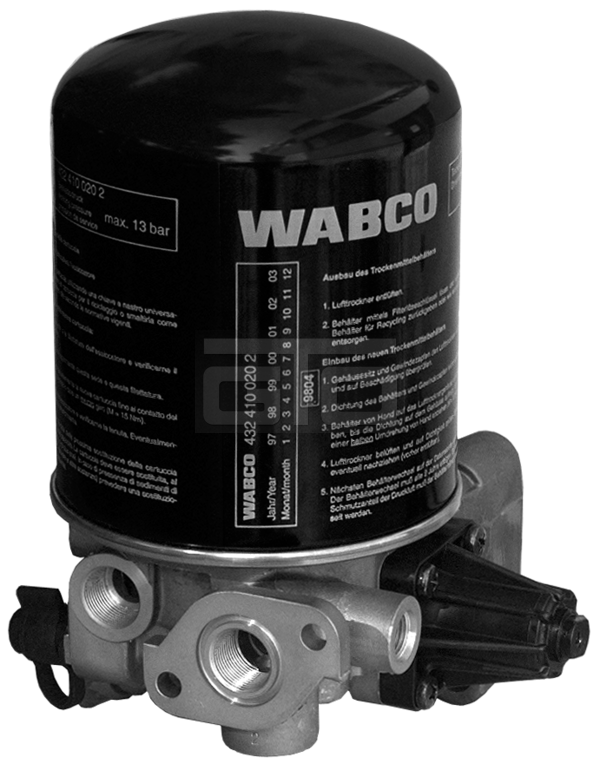

| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 174 psi |
| Exhaust | JED-463-1 |
| Heating connection | DIN ISO 3583 |
| Max. operating pressure | 188.5 psi |
| Opening pressure | 210.31 psi |
| Operational range | 21.76 psi |
| Port thread 11 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Port thread 3 | JED-463-1 |
| Port thread 31 | M22 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 7895851044166 |
| Size (mm x mm x mm) | 300x301x182 |
| Weight (kg) | 5.656 |
| Weight (lb) | 12.47 |
| Port thread 4/23 | 1/4" – 18 NPTF |
| Brand | WABCO |
