Additional information
| Weight | 3,588 kg |
|---|---|
| Reference number | DP002141, 1518678, 81521026103, 81521026104, 81521026108, 36521026020, 81521026152, 81521026104, 0000028714, 28210401000 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 6.8339 |

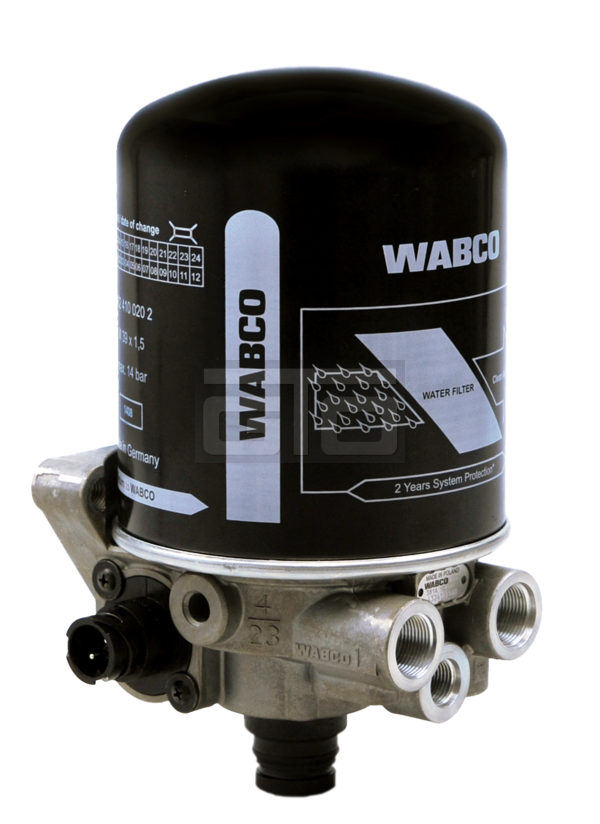

| Cartridge type | Desiccant Cartridge |
| Comments | Ports 21 and 22 for Voss push-in fittings |
| Cut-out pressure | 145 psi |
| Exhaust | Snap-on contour |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 188.5 psi |
| Operational range | 14.50+7.25 psi |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | M16 x 1.5 |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875171287 |
| Size (mm x mm x mm) | 258 x 172 x 154 |
| UPC | 193133254881 |
| Weight (kg) | 3.588 |
| Weight (lb) | 7.9102 |
| Unloader | No |
| Brand | WABCO |
