Additional information
| Weight | 3,34 kg |
|---|---|
| Reference number | 1505034, 8160475, 08160472, 08160473, 08160475, 41000230, 41017240, 8160475, 4324100350, 8160472, 1505034 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume (dm³) | 7.459 |

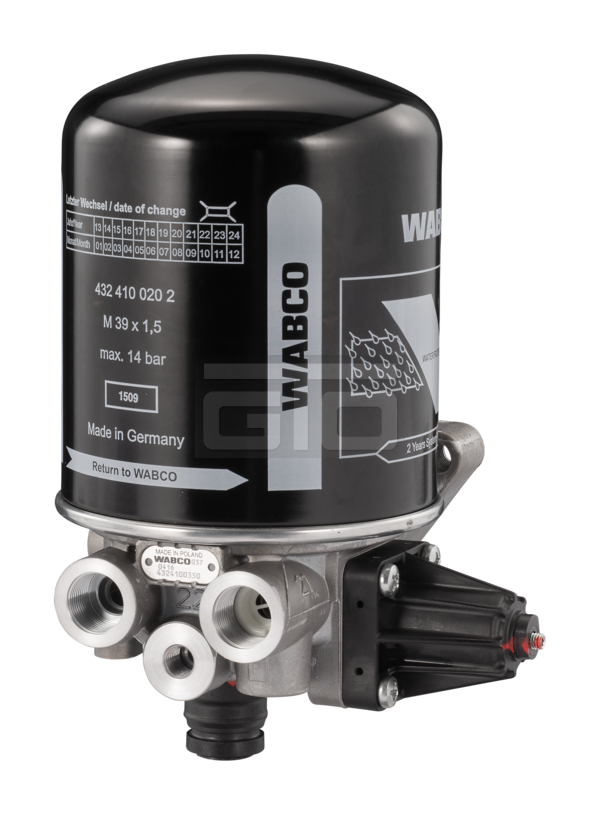

| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 159.54 psi |
| Exhaust | Snap-on contour |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 188.5 psi |
| Operational range | 10.15+8.70 psi |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 7895851073388 |
| Size (mm x mm x mm) | 259 x 187 x 154 |
| UPC | 193133254430 |
| Weight (kg) | 3.34 |
| Weight (lb) | 7.363 |
| Voltage | 24 V |
| Brand | WABCO |
