Additional information
| Weight | 0,407 kg |
|---|---|
| Reference number | 660247, 4342050260, 1505386, 89199295144, 110274100, 11017482, 1102741545400, 1505386, 637211140, 28210201000, 1580024 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuating range | 0.20 in |
| Actuation | Push (M6) |
| Calculated Volume (dm³) | 0.3078 |
| Comments | No locking function (M6) |
| Exhaust | Via hole in body |
| Max. operating pressure | 145.0 psi |
| Mounting | M26 x 1.5 |
| Nominal diameter | 5.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |

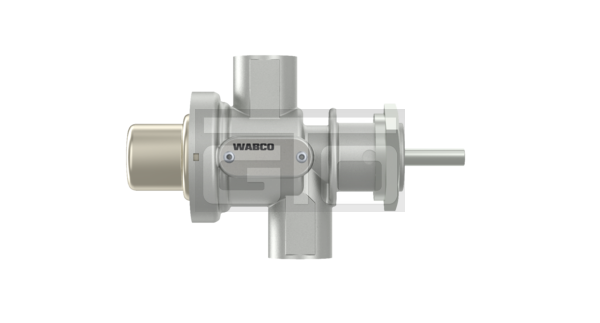

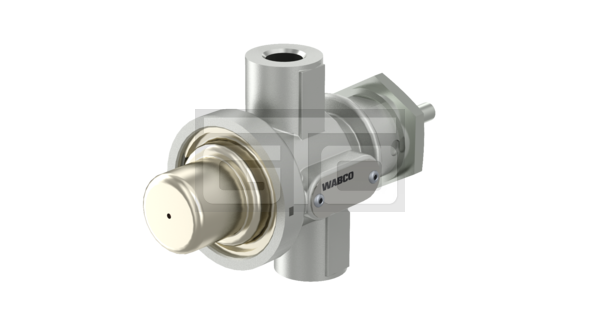

| Type | 3/2 |
| GTIN | 7895851058248 |
| Size (mm x mm x mm) | 72 x 45 x 95 |
| UPC | 193133275800 |
| Weight (lb) | 0.89728 |
| Weight (kg) | 0.407 |
| Brand | WABCO |
