Additional information
| Weight | 0,412 kg |
|---|---|
| Reference number | 1304639, 0034296844, 0266861, 1591035, 42043861, 997904011, 8143289, 8025115000, A0034296844, 01051, 1051, 007616, CF351271, AJY8397, H03197101, A16608M80A01, NB2044, 42043861, 42043861, 101753, 0034296844, 0266861, 1304639, 1591035, 505811477, 1121023, 502937908, 90810115183, 0014290544, A0034296844, 0034296844, A6623200958, A0014290544, A0054295444, 0266861, 1304639, 1591035, 42043861, 0658110, 1304639, 5021170242, 5010056472, 4425002500, 262083, 1788964, 1795238, 050515, 730238, 50515, 21151103240, 637212970, 20186934, 186934, 1591035, 0034296844, 0266861, 1304639, 42043861 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Actuation | Air |
| Calculated Volume (dm³) | 0.144 |
| Comments | No locking function |
| Max. operating pressure | 145.0 psi |
| Nominal diameter | 7.0 mm |
| Port thread 1 | M14 x 1.5 |
| Port thread 2 | M14 x 1.5 |
| Port thread 3 | M14 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -25°C to 80°C |

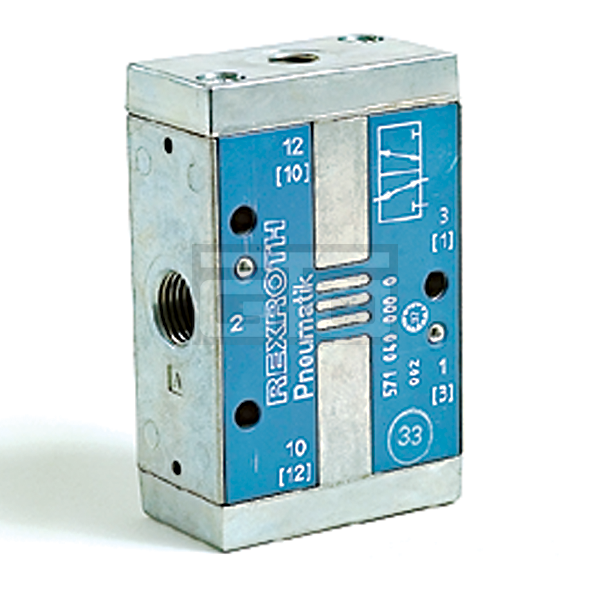

| Type | 3/2 |
| GTIN | 04057875230502 |
| Size (mm x mm x mm) | 87 x 55 x 30 |
| UPC | 193133320326 |
| Weight (kg) | 0.412 |
| Weight (lb) | 0.9083 |
| Brand | WABCO |
