Additional information
| Weight | 1,62 kg |
|---|---|
| Reference number | 1518949, 42106090, 42032466, 4203246, 5000452555, 5000452555, 4203246, 42106090 |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Break point | 8.7 psi |
| Calculated Volume (dm³) | 3.312 |
| Control Pressure | Max 145 psi |
| Control stroke | 0° to +30° |
| Distance between bolts | 3.31×3.31 in |
| Exhaust | Snap-on contour |
| Max. operating pressure | 145.0 psi |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total stroke | -45° to +95° |
| Type | Mechanical |
| GTIN | 04057875224112 |
| Size (mm x mm x mm) | 230 x 120 x 120 |
| UPC | 193133260196 |
| Weight (kg) | 1.62 |
| Weight (lb) | 3.5715 |

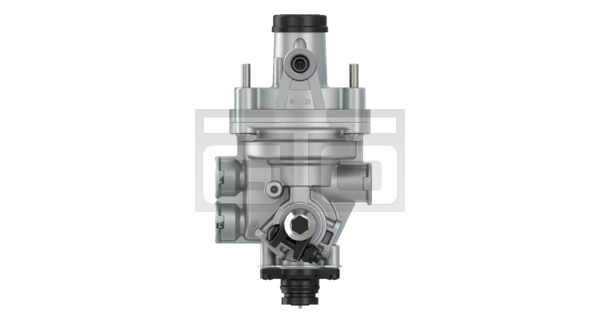

| Type of operation | Relay Valve |
| Brand | WABCO |
