Description

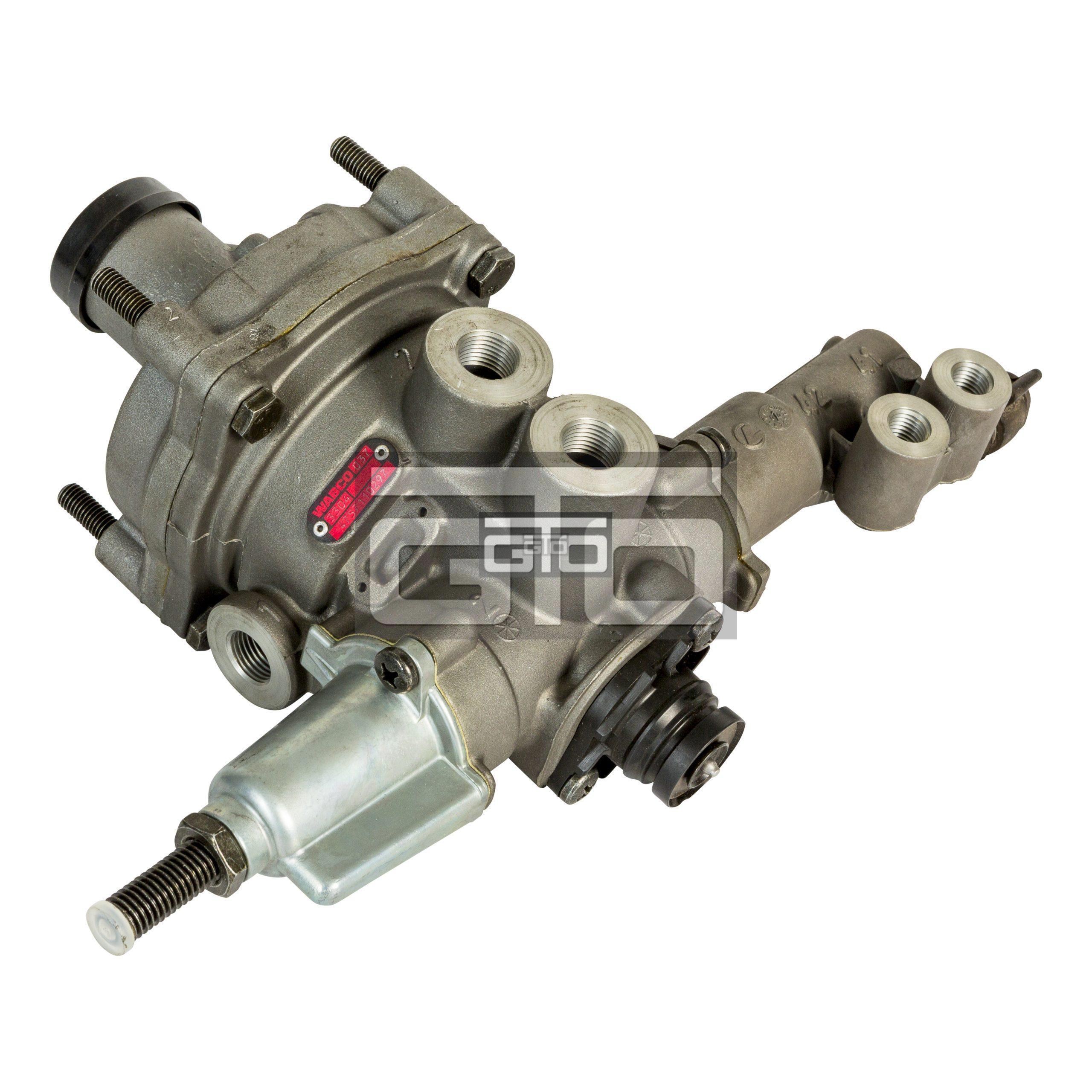

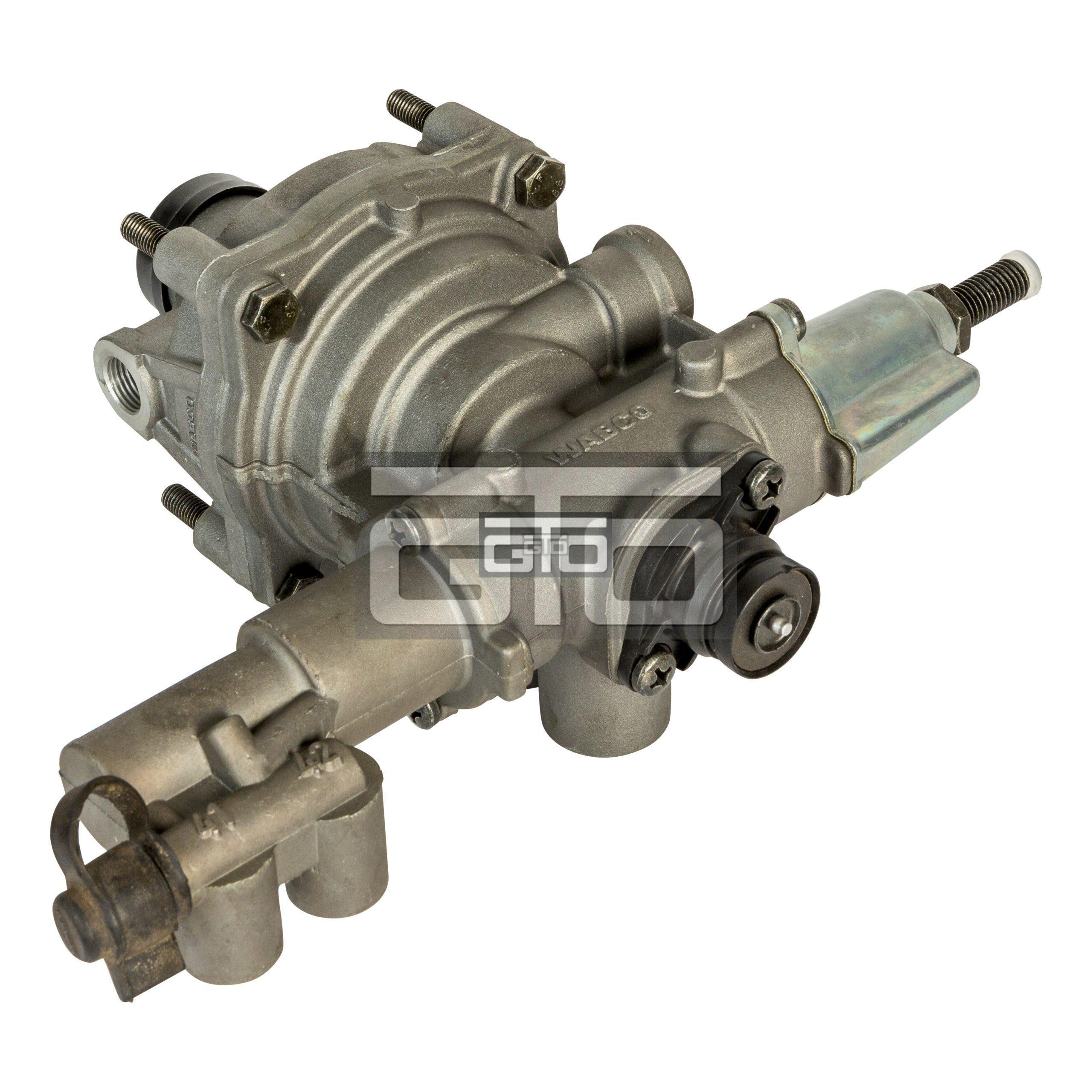

LSV Pneumatic Relay
- Brand – WABCO Original
- Part type – Premium original quality
- Break point – 0.5 bar
- Calculated Volume (dm³) – 8.4385
- Distance between bolts – 84×84 mm
- Exchange unit for – 475 711 029 0
- Exhaust – Snap on contour JED – 463
- Max. operating pressure – 13.0 bar
- Mounting – 4x M8
- Port thread 1 – M16 x 1.5
- Port thread 2 – M16 x 1.5
- Port thread 4 – M16 x 1.5
- Product category – Device
- Range of adjustment – 0.5 to 5.9 bar
- Regulating ratio – 1:8
- Technical specification – OE specification
- Temperature range – -40°C to +80°C
- Type – Pneumatic
- Type of operation – Dynamic
- Size (mm x mm x mm) – 317 x 220 x 121
- UPC – 193133483649
- Weight (kg) – 1.946
- Weight (lb) – 4.2902
Cross Reference :
- DF – 0378234R
- DF – 1518962R
- RENAULT – 5021170227
- SCANIA – 1935082
