Air / Hydraulic Chamber

Description

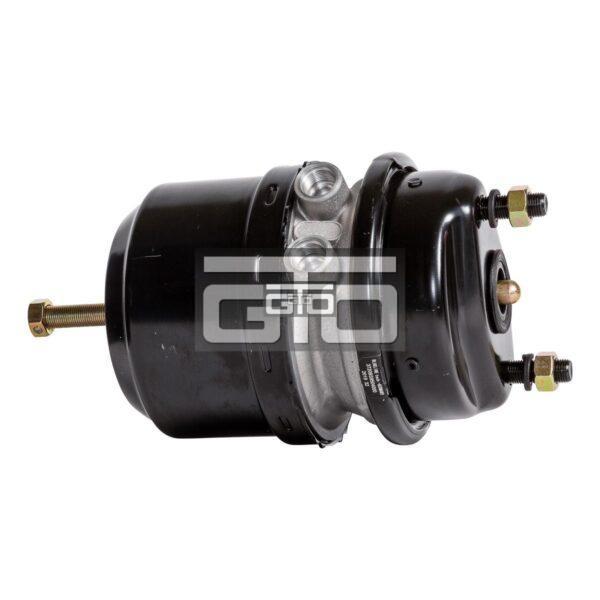

Air / Hydraulic Chamber

Caliper Disc Brake

Type – 20, 20 x 75

• Brand – WABCO Original
• Part type – Premium original quality
• Product category – Device
• Calculated Volume (dm³) – 6.147
• Con-rod length – 1.81 in
• Distance between holes – 3.25 in
• Max. operating pressure – 145.0 psi
• Mounting – 3 x M10
• Output force – 1686.07 lbf
• Port thread 11 – M16 x 1.5
• Push-rod thread – R 0.22 in
• Stroke – 2.95 in
• Technical specification – OE specification
• Temperature range – -40°C to +80°C
• Type – 20, 20 x 75
• Version – Without console mounting
• Size (mm x mm x mm) – 175 x 182 x 193
• UPC – 193133244134
• Weight (kg) – 3.207
• Weight (lb) – 7.0702
