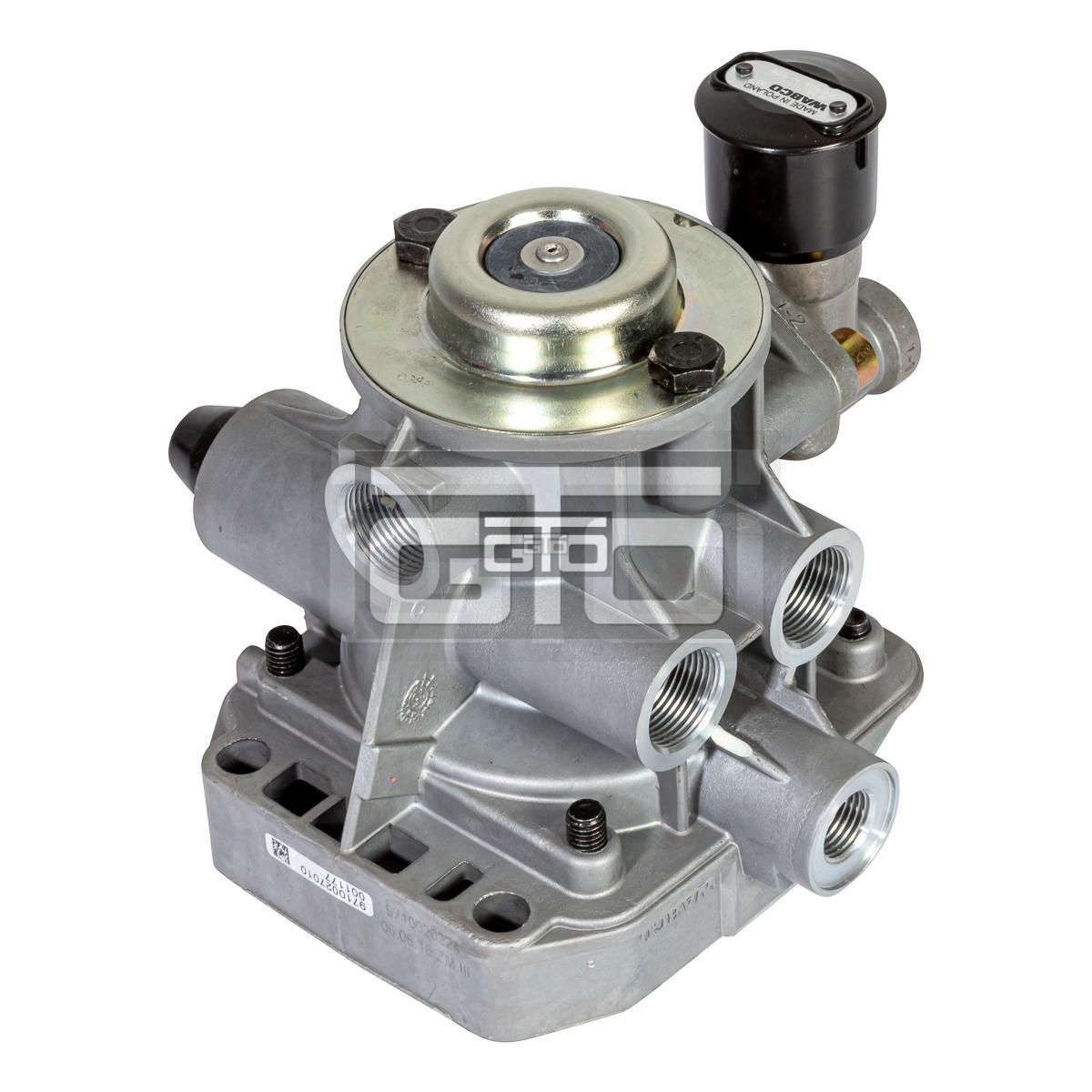

Wabco noodrelaisventiel

Beschrijving

Wabco noodrelaisventiel

• Brand – WABCO Original
• Part type – Premium original quality
• Product category – Device
• Adjustable Predominance – Adjustable: 0 to 14.5 psi
• Calculated Volume (dm³) – 3.7878
• Comments – Combination of 9710023000 and release valve 9630010120
• Distance between holes – 2.8 inch
• Max. operating pressure – 123.28 psi
• Mounting – 2x Ø 11.0 mm
• Port thread 1 – M16 x 1.5
• Port thread 12 – M22 x 1.5
• Port thread 2 – 3x M22 x 1.5
• Port thread 3 – Flap Exhaust
• Port thread 4 – M16 x 1.5
• Range of adjustment – 14.50 psi
• Technical specification – OE specification
• Temperature range – -40°C to +80°C
• Type – With brake valve and Release valve
• Size (mm x mm x mm) – 144 x 192 x 137
• UPC – 193133375449
• Weight (kg) – 1.623
• Weight (lb) – 3.5781
