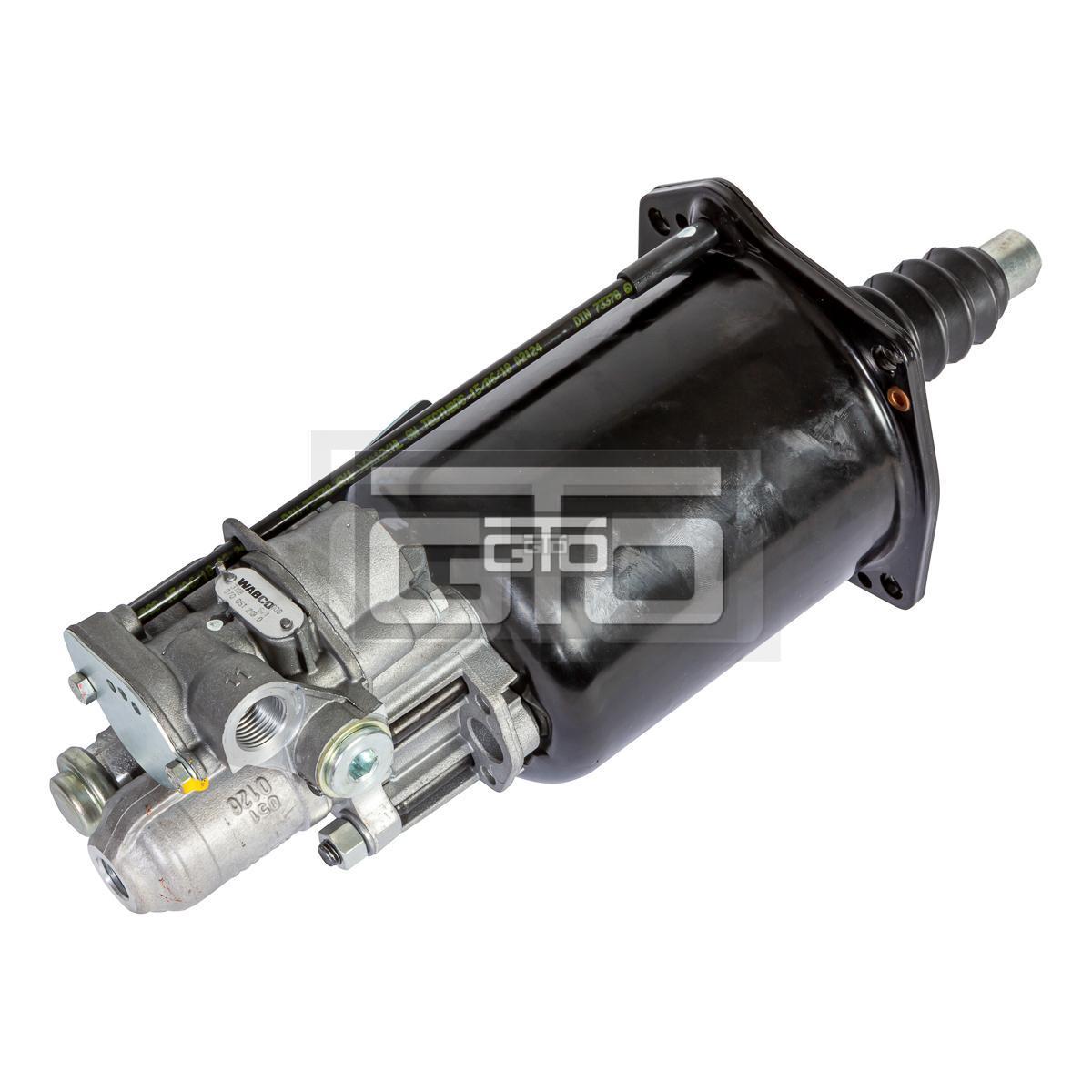

Wabco Koppelingsversterker

Beschrijving

Transmissie Koppelingsversterker

• Brand – WABCO Original
• Part type – Premium original quality
• Product category – Device
• Calculated Volume (dm³) – 5.7439
• Comments – RVI
• Distance between holes – 5.12 in
• Length – 348 mm
• Max. operating pressure – 145.0 psi
• Medium – Brake fluid SAE J 1703
• Mounting – 4x Ø 9.0 mm
• Port thread 1-4 – M14 x 1.5 ( B )
• Port thread 11 – M16 x 1.5
• Port thread 12 – M12 x 1.5
• Port thread 22 – M12 x 1.5
• Port thread 31 – Flap Exhaust
• Port thread 32 – Ø 8.0 mm
• Push-rod thread – M12 x 1.0
• Stroke – 1.02 in
• Technical specification – OE specification
• Temperature range – -40°C to +80°C
• Test Connection – M16 x 1.5 (J)
• Size (mm x mm x mm) – 362 x 123 x 129
• UPC – 193133449683
• Weight (kg) – 3.644
• Weight (lb) – 8.0336
