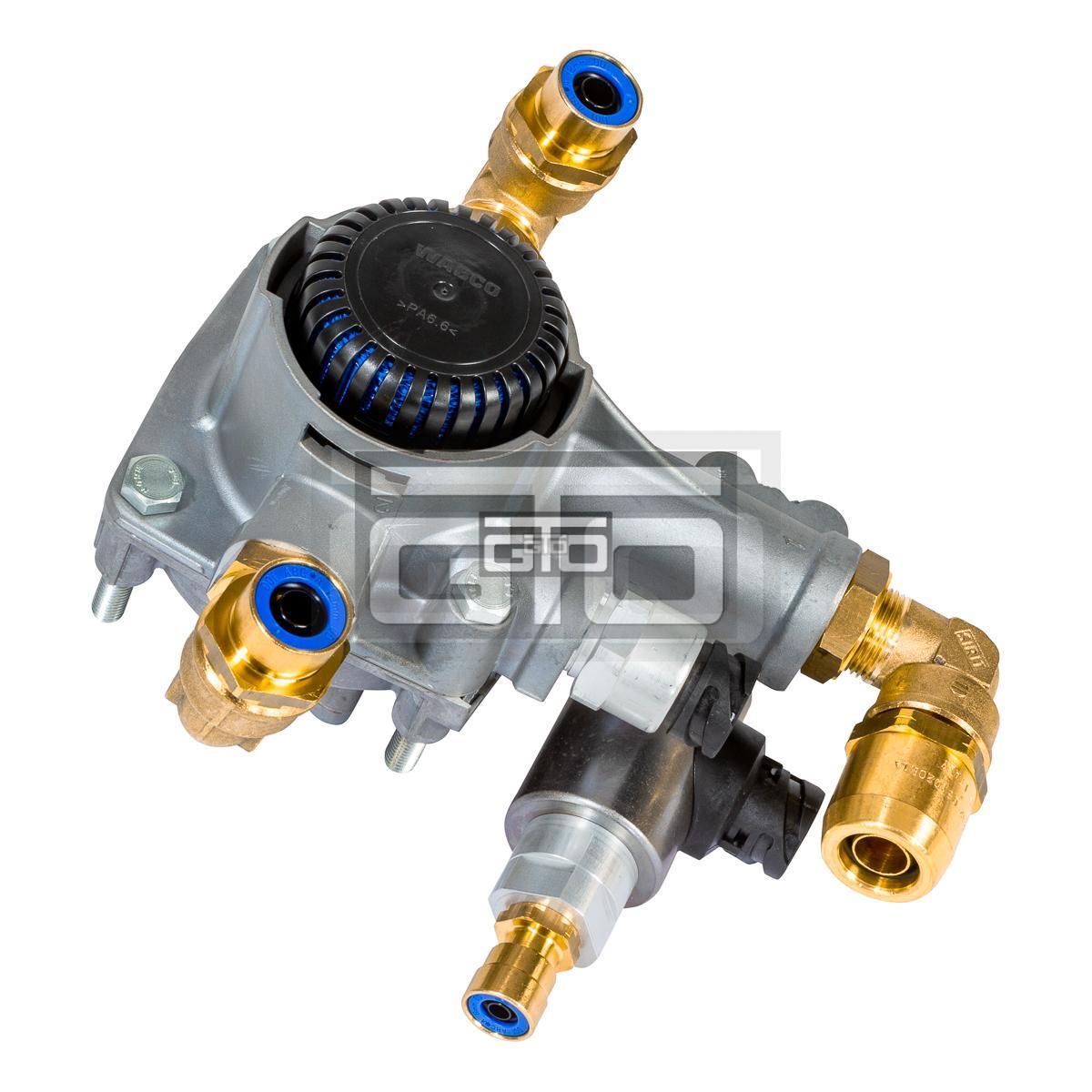

EBS – Relay Klep Met Connectors

Beschrijving

EBS – Relay Klep

Met Connectors

• Brand – WABCO Original
• Part type – Premium original quality
• Product category – Device
• Calculated Volume (dm³) – 3.5599
• Distance between bolts – 2.95×2.95 in
• Electrical connection – 3x Bayonet DIN 72585
• Max. operating pressure – 145.0 psi
• Mounting – 3x M8
• Port thread 1 – M22 x 1.5
• Port thread 2 – M22 x 1.5
• Port thread 3 – Integrated Silencer
• Port thread 4 – M12 x 1.5 JED – 464
• Protection class – IP 69K
• Technical specification – OE specification
• Temperature range – -40°C to +80°C
• Voltage – 24 V
• Size (mm x mm x mm) – 181 x 149 x 132
• UPC – 193133444893
• Weight (kg) – 1.787
• Weight (lb) – 3.9397
